S Primer Force-Cure Epoxy up to 80°C by CANUSA-CPS

Force-cure epoxy for superior three-layer corrosion protection of field welded joints of steel pipes.

Product Description

Canusa-CPS S Primer is a specially formulated 100% volume solids(solventless) two component epoxy. As a primer in a three-layer polyethylene coating system for superior corrosion protection of field welded joints of steel pipes. The primer has extended pot life at high temperatures, which allows for longer working time.

Application

  1. Prepare the pipe surface as recommended in the product-specific Installation Guide.

  2. Follow the mixing instructions that are contained within the epoxy packaging.

  3. With a gloved hand, pour the combined mixture onto the pipe.

  4. Begin spreading the epoxy primer (to a uniform thickness) circumferentially around the pipe surface using the applicator pad.

  5. Use a wet film thickness gauge to ensure a correct, uniform thickness has been achieve all around the pipe.


Specifications


Property

CANUSA S Primer

Color

Black

Volume Solids

100%

Weight Solids

100%

Mixing Ratio

(by volume) - 3.0 parts of S Primer base to 1 part of S Primer cure.
(by weight) - 4.6 parts of S Primer base to 1 part of S Primer cure.

Typical Coverage

20 sq.m./US gallon (215 sq.ft/US gallon) or 5.3 sq.m/liter (57 sq.ft/liter). This coverage is based on 6 mils of thickness and assuming 20% waste factor.

Specific Gravity

S Primer Base - 1.58 ± 0.03
S Primer Cure - 1.02 ± 0.02

Viscosity

S Primer Base - 14,000 ± 2,000 cps @ 60 C, #7 spindle at 10 rpm.
S Primer Cure - 250 ± 50 cps @ 25°C, #3 spindle at 20 rpm.

Typical Thickness

4 to 6 mils (0.10 to 0.15 mm)

Number of Coats

One

Pot Life

140 minutes @ 23°C (73°F), 30 minutes @ 40°C (104°F).

Shelf Life

3 years @ 23°C, out of direct sunlight. Shelf life will be lesser at higher temperatures.

Flash Point

S Primer Base - >93°C (200°F)
S Primer Cure - >93°C (200°F)

Thinner

Do not dilute.

Minimum Curing Temperature

10°C (50°F)

Safety

Handle with care. Before and during use, observe all safety labels on packaging and paint containers, consult CANUSA Material Safety Data
Sheets and follow all local or national safety regulations. Harmful or fatal if swallowed; immediately seek medical assistance if swallowed. Avoid inhalation if possible solvent vapors or paint mist, as well as paint contact with skin and eyes. Apply only in well ventilated areas and ensure that adequate forced ventilation exists when applying paint in confined spaces or when the air is stagnant. Always take precautions against the risks of fire and explosions.

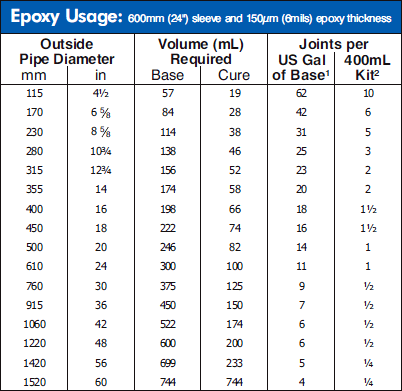

Amount Required


Epoxy required for 600 mm / 24" cutback. For other cutbacks, divide by 24 and multiply by new cutback in inches.
Example: 200 mm (8") cutback on 610 mm diameter pipe
Base: 300 mL x 8/24 = 100 mL base
Cure: 100 mL x 8/14 = 33 mL cure

1

2


Mixing ratio by volume of base to cure is 3.0 : 1. Therefore, for 1 US gallon of Base, 0.33 US gallons of cure will be required.
Due to pot life limitations, it may be impractical to coat multiple joints with the same epoxy kit.
How to Order


Property

CANUSA E Primer

Epoxy CB Unit

CB Units include pre-measured quantities of S Primer Base in a metal can and S Primer Cure in a plastic bottle. Application Accessories (gloves, application pad and mixing sticks) must be purchased separately.

Epoxy CB Kit

CB Kits include pre-measure quantities of S Primer Base in a metal can, S Primer Cure in a plastic bottle, a pair of latex gloves, an application pad and two mixing sticks.

Bulk Epoxy

Bulk epoxy is available in US gallon quantities. The mixing ratio by volume of BASE to CURE is 3.0:1

Bulk Accessories

Bulk accessories (i.e. appl. access. kits, dispensing pump, etc.) are available for easier field mixing and preparation.



Product Designation3

Package Contents*

S Primer CB Unit - 400 mL

300 mL of S Primer Base, 100 mL of S Primer Cure

S Primer CB Kit - 400 mL

1 US gallon (3.79 L) of S Primer Base

S Primer Base - 1 US Gal

1 US gallon (3.79 L) of E Primer Base

S Primer Base - 5 US Gal

5 US gallon (18.9 L) of S Primer Base

S Primer Cure - 1 US Gal

1 US gallon (3.79 L) of S Primer Cure

S Primer Cure - 5 US Gal

5 US gallon (18.9 L) or S Primer Cure

Primer Appl. - CB Units Small ø

100 application pads, 2 pairs of latex gloves, 100 mixing sticks

Primer Appl. - CB Units Large Ø

200 application pads, 4 pairs of latex gloves, 200 mixing sticks

Primer Appl. - BP Units Small ø

100 application pads, 2 pairs of latex gloves

Primer Appl. - BP Units Large Ø

200 application pads, 4 pairs of latex gloves

Primer Appl. Acces. - Bulk Small ø

100 12-oz cups, 100 4-oz cups, 2 pairs of latex gloves, 100 application pads, 100 mixing sticks

Primer Appl. Acces. - Bulk Large Ø

100 26 oz cups, 100 12 oz cups, 2 pairs of latex gloves, 200 application pads, 100 mixing sticks

Epoxy Dispensing Pump - 5 US Gal

Dispensing Pump designed for the 5 US gallon container of S Primer Base or S Primer Cure


3

*

**


Small diameter ø represents joints completed with one installer. As a general rule, only one installer is required up to 18” (450 mm) pipe sizes.
Latex gloves associated with Bulk Accessories are heavy duty and can be used for more than one joint.
For large projects, joint specific pre-measured epoxy quantities (other than standard 400 mL) will be considered.
