AnodeFlex 3000-Cu Series Linear Anode System by Farwest Corrosion
Copper Core MMO Wire for Long-line, Flexible Impressed Current C.P. Systems
AnodeFlex 3000 is a long-life, flexible, wire anode, which can be placed remote to the target structure. Greater current output can be achieved on applications where close proximity anode groundbeds do not work.
Key to the product's performance is the central, copper-core mixed metal oxide anode. The anode is powered by a # 8 AWG copper cable insulated with an inner layer of halar and outer layer of high molecular weight polyethylene. The unique construction of the anode and copper cable allows high current output with protection against low pH and chlorine attack.
AnodeFlex 3000 can be placed remote to the steel surface to be protected, thereby maintaining the steel-to-soil "instant-off" potential in the required window of -850 mV (-950 mV if SRB's present) and -1200 mV.
The central MMO wire and cable are surrounded by factory prepackaged, high-conductivity coke breeze, held in place by a porous, woven acid-resistant jacket. This arrangement avoids handling loose coke breeze and simplifies field installation. The improved current distribution increases anode efficiency and maintains a low resistance groundbed. On poorly coated pipelines where optimal polarization can no longer be achieved, AnodeFlex 3000 can often be installed as an alternative to expensive recoating. Both on single and multi-parallel pipelines, safe levels of polarization will be restored at every point. The system avoids difficult and costly field recoating and greatly reduces environmental disturbance.
Anode Flex 3000-01 is delivered on long length spools. Because no additional coke breeze is required, the installation is as simple as laying a low -voltage power cable. Proven heat-shrinkable splice kits, with tee splices and end sealing caps, are available to complete any installation design.
Product Features / Benefits
Anode can be remote to the pipeline Distributes current uniformly over total length. No over- or under-protected areas. Prevents accelerated coating disbondment. More effective and economical than a series of discrete anodes.
Pipeline Rehabilitation without Excavation A fraction of the cost of recoating. Environmentally friendly. No loss of revenue or supply interruptions. No safety problems associated with working on live lines. Far quicker, up to 1.25 miles (2 km) laying speed per day.
Long continuous circuit lengths 67% fewer joints compared to conventional anode systems. Lower maintenance cost.
Flexible under tank bottom design Directional drill with no PVC, no backfill. Tight bend radius. Driving voltage is lower than conventional MMO.
Pre-packaged coke breeze Simplifies field installation. Installation with standard cable laying equipment. Fast, easy & cost effective.

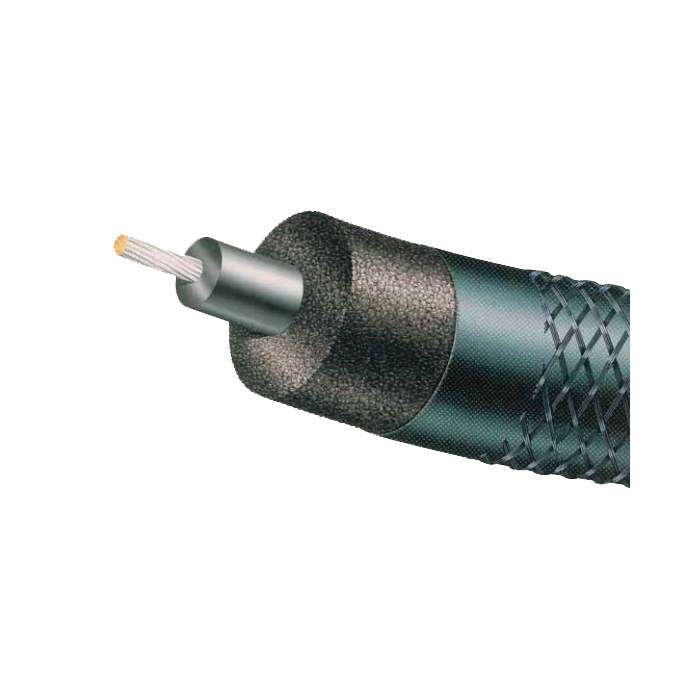

AnodeFlex 3000 Construction
Five basic product elements:
Central Copper Bus Cable: #8 AWG Halar Insulated, serving as a low resistance busbar to deliver the required current over considerable distance without incurring substantial longitudinal voltage drop. Halar insulation seals the conductor from chemical attack.
Copper-Cored, Mixed Metal Oxide Anode (MMO): Provides low attenuation for reduced splicing, in combination with prepackaged coke breeze, offers a low resistance groundbed designed for a minimum life of 40 years.
Coke Breeze: Pre-packaged, high performance calcined petroleum coke breeze, serving as the active matrix in which the electrochemical reactions take place. Designed for min. 20 years service life at max. Current output of 656 mA/m (200 mA/ft).
Fabric Jacket: Integrated woven, acid resistant and porous jacket holding the coke breeze in place around the anode.
Protective Braid: Tough, porous, non-conductive protective braid enhancing the abrasion and damage resistance of the jacket.
Maximum Temperature: 50ºC - 122ºF
Product Model
Product Description
Anodeflex 3020-Cu
20mA/ft (65mA/m) linear anode
Anodeflex 3100-Cu
100mA/ft (328mA/m) linear anode
Anodeflex 3200-Cu
200mA/ft (656mA/m) linear anode
Anodeflex Accessories
Tees, Splices and End Seals
AnodeFlex 3000 Typical Properties
Copper Conductor
Dimensions
8 AWG per ASTM B-263
Coke Breeze
Fixed carbon Resistivity
99.7% per ASTM D-172 0.4 ohm-cm per G.L.C.-C-12A at 23ºC, 10 bar
200 g/m2 min, 229 g/m2 typical 575 N per ISO 3303 219 cycles to failure per ASTM D-4157 Pass, 6-month immersion test Pass, 6-month immersion test 55% tear strength loss per ASTM G-53, 8 hrs @ 60ºC (140ºF), 4 hrs condensation @ 50ºC (122ºF)
AnodeFlex 3000 Ordering Information AnodeFlex type products are available on a spool.
Part Number
Description
AFLX 3000-02
Copper-core MMO with copper conductor surrounded by pre-packaged high-conductivity coke breeze. Standard length 494 m ± 6 m (1620 ft ± 120 ft)
AFLX-3000-CAP AFLX-3000-TEE AFLX-3000-SPLICE
End seal kit Tee splice kit In-line splice kit
AnodeFlex 3000 is a long-life, flexible, wire anode, which can be placed remote to the target structure. Greater current output can be achieved on applications where close proximity anode groundbeds do not work.
Key to the product's performance is the central, copper-core mixed metal oxide anode. The anode is powered by a # 8 AWG copper cable insulated with an inner layer of halar and outer layer of high molecular weight polyethylene. The unique construction of the anode and copper cable allows high current output with protection against low pH and chlorine attack.
AnodeFlex 3000 can be placed remote to the steel surface to be protected, thereby maintaining the steel-to-soil "instant-off" potential in the required window of -850 mV (-950 mV if SRB's present) and -1200 mV.
The central MMO wire and cable are surrounded by factory prepackaged, high-conductivity coke breeze, held in place by a porous, woven acid-resistant jacket. This arrangement avoids handling loose coke breeze and simplifies field installation. The improved current distribution increases anode efficiency and maintains a low resistance groundbed. On poorly coated pipelines where optimal polarization can no longer be achieved, AnodeFlex 3000 can often be installed as an alternative to expensive recoating. Both on single and multi-parallel pipelines, safe levels of polarization will be restored at every point. The system avoids difficult and costly field recoating and greatly reduces environmental disturbance.
Anode Flex 3000-01 is delivered on long length spools. Because no additional coke breeze is required, the installation is as simple as laying a low -voltage power cable. Proven heat-shrinkable splice kits, with tee splices and end sealing caps, are available to complete any installation design.
Product Features / Benefits
Anode can be remote to the pipeline Distributes current uniformly over total length. No over- or under-protected areas. Prevents accelerated coating disbondment. More effective and economical than a series of discrete anodes.
Pipeline Rehabilitation without Excavation A fraction of the cost of recoating. Environmentally friendly. No loss of revenue or supply interruptions. No safety problems associated with working on live lines. Far quicker, up to 1.25 miles (2 km) laying speed per day.
Long continuous circuit lengths 67% fewer joints compared to conventional anode systems. Lower maintenance cost.
Flexible under tank bottom design Directional drill with no PVC, no backfill. Tight bend radius. Driving voltage is lower than conventional MMO.
Pre-packaged coke breeze Simplifies field installation. Installation with standard cable laying equipment. Fast, easy & cost effective.
AnodeFlex 3000 Construction
Five basic product elements:
Central Copper Bus Cable: #8 AWG Halar Insulated, serving as a low resistance busbar to deliver the required current over considerable distance without incurring substantial longitudinal voltage drop. Halar insulation seals the conductor from chemical attack.
Copper-Cored, Mixed Metal Oxide Anode (MMO): Provides low attenuation for reduced splicing, in combination with prepackaged coke breeze, offers a low resistance groundbed designed for a minimum life of 40 years.
Coke Breeze: Pre-packaged, high performance calcined petroleum coke breeze, serving as the active matrix in which the electrochemical reactions take place. Designed for min. 20 years service life at max. Current output of 656 mA/m (200 mA/ft).
Fabric Jacket: Integrated woven, acid resistant and porous jacket holding the coke breeze in place around the anode.
Protective Braid: Tough, porous, non-conductive protective braid enhancing the abrasion and damage resistance of the jacket.
Maximum Temperature: 50ºC - 122ºF
Product Model
Product Description
Anodeflex 3020-Cu
20mA/ft (65mA/m) linear anode
Anodeflex 3100-Cu
100mA/ft (328mA/m) linear anode
Anodeflex 3200-Cu
200mA/ft (656mA/m) linear anode
Anodeflex Accessories
Tees, Splices and End Seals
AnodeFlex 3000 Typical Properties
Copper Conductor
Dimensions
8 AWG per ASTM B-263
Coke Breeze
Fixed carbon Resistivity
99.7% per ASTM D-172 0.4 ohm-cm per G.L.C.-C-12A at 23ºC, 10 bar
200 g/m2 min, 229 g/m2 typical 575 N per ISO 3303 219 cycles to failure per ASTM D-4157 Pass, 6-month immersion test Pass, 6-month immersion test 55% tear strength loss per ASTM G-53, 8 hrs @ 60ºC (140ºF), 4 hrs condensation @ 50ºC (122ºF)
AnodeFlex 3000 Ordering Information AnodeFlex type products are available on a spool.
Part Number
Description
AFLX 3000-02
Copper-core MMO with copper conductor surrounded by pre-packaged high-conductivity coke breeze. Standard length 494 m ± 6 m (1620 ft ± 120 ft)
AFLX-3000-CAP AFLX-3000-TEE AFLX-3000-SPLICE
End seal kit Tee splice kit In-line splice kit
