CerAnode PiggyBack Tank Bottom Anode

Each System is custom designed for the application! 50-Year Design Life
  • Product Description

    The CerAnode MMO PiggyBack Tank Bottom (PBT) Anode System is an excellent choice for protecting the soil side bottom of an Aboveground Storage Tank (AST) . It provides optimized cathodic protection (CP) for new tanks, existing tank bottom replacement or double bottom applications where space is limited due to a close-proximity plastic secondary-containment liner.

    The system consists of CerAnode’s MMO anode wire connected to the header cable at preset intervals for a factory designed anode "loop".  These individual concentric loops provideoptimized current distribution for the tank bottom, ease of installation, and long anode life for an ideal CP solution. With 100% factory design, factory assembly and factory connections it arrives ready to intalland no field connections are necessary.

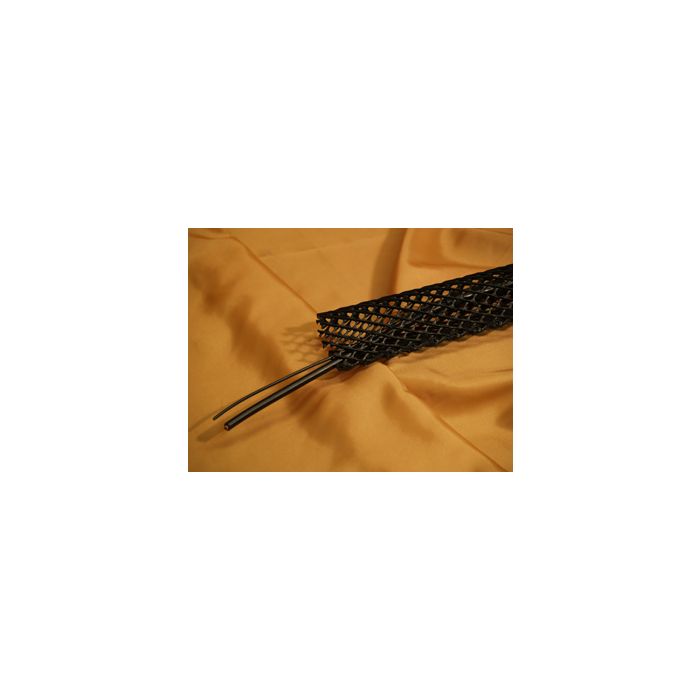

    CerAnode offers an optional plastic mesh for applications where the anode will be installed within inches of the tank bottom.  The mesh provides added protection against possible anode wire-to-tank bottom electrical shorts.

    Each System is custom designed for the application! 50-Year Design Life



    Product Data Sheet

  • Features:

    • Discrete concentric arcs
    • Each arc has individual redundant leads
    • Arcs follow tank bottom symmetry
    • Optimized for tank annular plate & rim protection
    • Designed for direct burial in sand
    • 100% factory heavy duty connections
    • Less than 10% current attenuation
    • Low cost and easy to install
    • Optional integrated plastic mesh
    • Customized computer design printout
    • Arrives on site ready to lay in place
    • 50-year design life

    Benefits

    • Optimized current distribution and groundbed resistance
    • Superior power efficiencies
    • Excellent interfere mitigation
    • Environmentally safe materials that are inert, benign, and biodegradable
