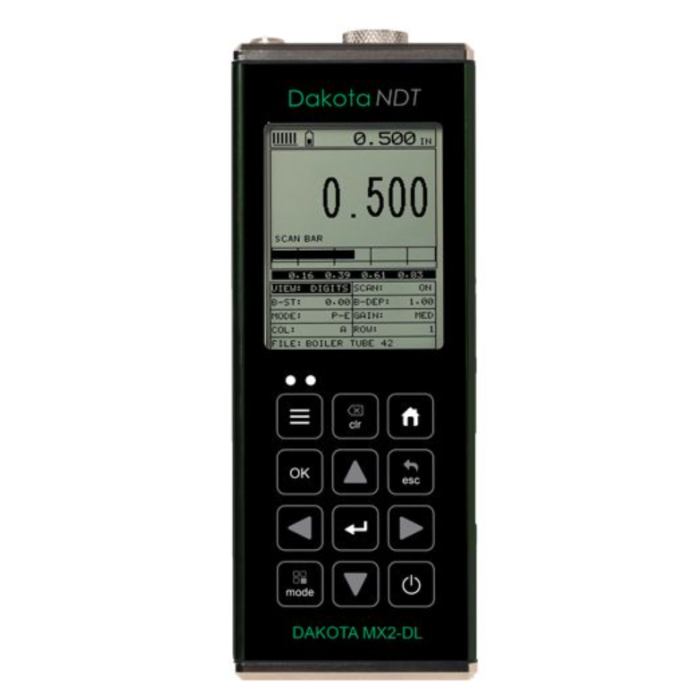

Dakota MX2-DL Corrosion Thickness Gauge

The Dakota MX2-DL Thickness Gauge offers 2D cross sectional block view, providing a graphical representation of a material's thickness, ideal for accurate analysis and identification of pits and corroded areas.t

Attachments

  • The Dakota MX2-DL Thickness Gauge offers 2D cross sectional block view, providing a graphical representation of a material's thickness, ideal for accurate analysis and identification of pits and corroded areas.

    MX2-DL Ultrasonic Thickness Gauge: Taking 250 readings per second in scan mode, the internal data logger stores up to 4GB worth of data together with their waveforms. The MX2-DL Thickness Gauge also features an A-Scan display, allowing users to fully interpret and control measurement readings. The user can select to view either the full waveform (RF) or the rectified waveform (RECT) showing either the positive or the negative cycle of the full waveform.

  • Model MX2-DL
    Display Mode
    Material thickness digits display
    X
    B-Scan cross sectional display
    X
    Combined B-Scan and digits display
    X
    Scan Bar Display
    X
    A-Scan Display
    + Rectified, - Rectified, Full Waveform (RF)
    Measurement Rate
    Manual
    8 readings per second
    Scan Mode
    250 readings per second
    Scan bar display
    10 readings per second
    Measurement Resolution
    0.01mm (0.001”)
    Velocity Calibration Range
    309.88 - 18,542m/s
    (0.0122 - 0.7300in/µs)

    Additional Features
    High Speed Scan Mode
    X
    Differential Mode

    Limit alarm mode
    X
    B-Scan Display Speed
    10 to 200 readings per second
    Calibration Setups
    64 user-definable setups transferable to and from a PC archive
    Gates
    • PE: 1 gate; EE: 2 gates, 1 gate with hold off
    • Adjustable threshold
    Pulser Type
    Square wave pulser with adjustable pulse width (spike, thin, wide)
    Gain
    Manual or automatic gain control (AGC) with 40dB range (depending on mode selected)
    Timing
    100MHz 8 bit ultra low power digitizer
    Memory and Data Logging
    • 4GB internal memory
    • Sequential and grid logging
    • Alpha numeric batch identification
    • OBSTRUCT indicates inaccessible locations
    • Bitmap graphic capture and capture viewer
    Transducer Probe Type
    Dual element
    Transducer Frequency Range
    1 - 10MHz
    Transducer Recognition
    Manual - selectable from a list
    V-path / dual path error correction
    Automatic
    Probe Zero
    Manual (via integrated probe disk)
    Display
    1/8 VGA (greyscale)
    62 x 45.7mm (2.4 x 1.8”) viewable area
    Display Refresh Rate
    25Hz
    Units (selectable)
    mm or inches
    LED Backlight
    on/off/auto
    Repeatability / Stability Indicator
    X
  • Part Number Description Certificate
    Z-149-0006 Dakota MX2-DL Thickness Gauge (MVX)
    X
    Transducer Probe Type Dual Element
    Measurement Accuracy 0.01mm (0.001”)
    Memory 4GB Internal Memory
    Operating Temperature -10 to 60ºC (14 to 140ºF)
    Data Output USB
    Power Supply 3 x AA batteries and via USB
    Battery Life Alkaline – 35 hrs, Nicad – 10 hrs and NI-MH – 35 hrs
    Gauge Weight 383g (13.5oz) - including batteries
    Gauge Dimensions 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”)
    Packing List Unit, Selectable Transducer, Couplant, Manual, Plastic Carrying Case, Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable included with data logging gauges.
