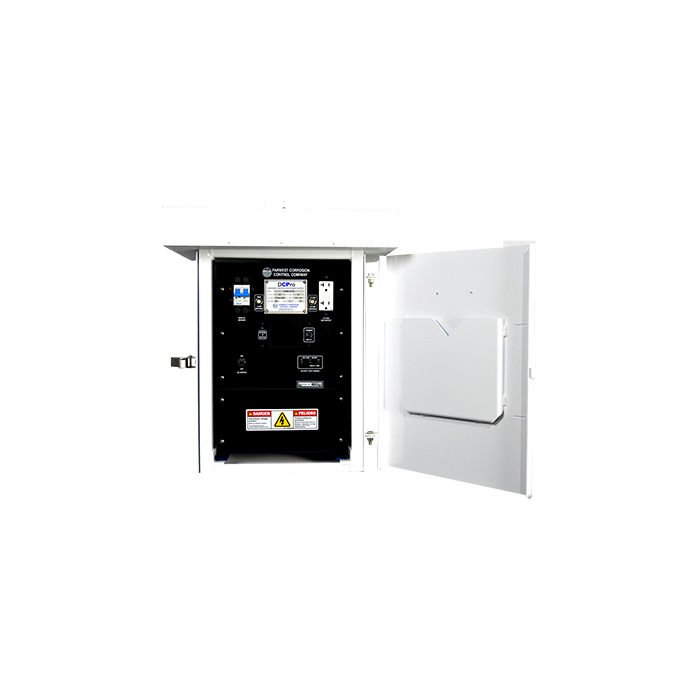

Farwest DCPro Cathodic Protection Power Supply

Two Power Output Choices Eliminate Need for Exact Power Output Rating

Farwest DCPro Cathodic Protection Power Supply

Description

The DCPro Cathodic Protection Power Supply is a durable, switch-mode power supply that provides clean, efficient DC power. With the look of a conventional rectifier, the DCPro requires no computer interface and no confusing menus to navigate. Engage the main breaker and turn the single control knob to adjust the current output.

A bright color display, readable in direct sun, presents both analog and digital output voltage and current output levels with a message window that can provide additional operational messages.

With the DCPro, no longer are very specific output ratings required to overcome output adjustment limitations.



Features

  • Simple to Operate
  • AC & DC Surge Protection
  • Lightweight  Component Chassis
  • Highly Efficient Power Conversion
  • Fully Solid-state  "Switch-Mode" Operation
  • Pure DC Output
  • Constant Current Output Technology
  • Simple Output Adjustment
  • 12-volt DC Power Supply for RMU and Portable Interrupter
  • Maintains Constant DC Current Output
  • Analog & Digital Current Output Readings
  • Built-in Interrupter Interface
  • Test points for cross-checking meter accuracy
  • Pre-wired  RMU Terminal Strip
  • Rejects Induced AC
  • Operates on any single-phase power from 115 to 240 VAC without primary tap changes
  • Operates up to 55 degrees C with over-temperature  protection
  • Dead-front Panel and Side Shields
  • Two Power Output Choices eliminate the need for exact power  output rating


Product Advantages

  • High operating efficiency of 80 to 90%
  • Pure DC power output with no AC ripple
  • Lightweight  construction
  • Built-in interrupt interface
  • Built-in RMU interface
  • Variable AC input without AC input tap changes
  • Analog and digital output and status display
  • Over-temperature sensors and protection
  • Built-in DC power supply for RMU & portable interrupter
  • Standard "Dead Front" safety panel
  • Constant current  output control, 0.1  amp steps
  • 115 VAC convenience outlet with GFI protection
  • Standard  AC &  DC surge protection
  • Standard RMU terminal strip
  • Standard 3-door aluminum enclosure
  • ETL Certified


Warranty

Three-year warranty provided from the date of purchase.

Specifications

DCPro Order Code

Farwest Item
Number

DC Output

AC Input

Chassis
Weight

Cabinet Types

Model
FSMA 30-20 ALPC

17-65000

30V-20A Max

115-240VAC, 1
Phase, 47-63 Hz

87

Alum. cabinet,
powder-coated white.

Model
FSMA 30-20 STPC

17-65002

30V-20A Max

115-240VAC, 1
Phase, 47-63 Hz

102

Steel. cabinet,
powder-coated white.

Model
FSMA 30-20 XX

17-65100

30V-20A Max

115-240 VAC, 1
Phase, 47-63 Hz

17

Power supply chassis only.
No cabinet.

Model
FSMA 50-50 ALPC*

17-65050

50V-50A Max or (2x) 50V-25A

115-240 VAC, 1
Phase, 47-63 Hz

135

Alum. cabinet,
powder-coated white.

Model
FSMA 50-50 STPC*

17-65052

50V-50A Max or (2x) 50V-25A

115-240VAC, 1
Phase, 47-63 Hz

170

Steel. cabinet,
powder-coated white.

Model
FSMA 50-50 XX*

17-65150

50V-50A Max or (2x) 50V-25A

115-240VAC, 1
Phase, 47-63 Hz

45

Power supply chassis only.
No cabinet.

*The DCPro power supply in the 50-volt, 50-amp output configuration can easily be field configured to provide controlled current to two separate structures.
