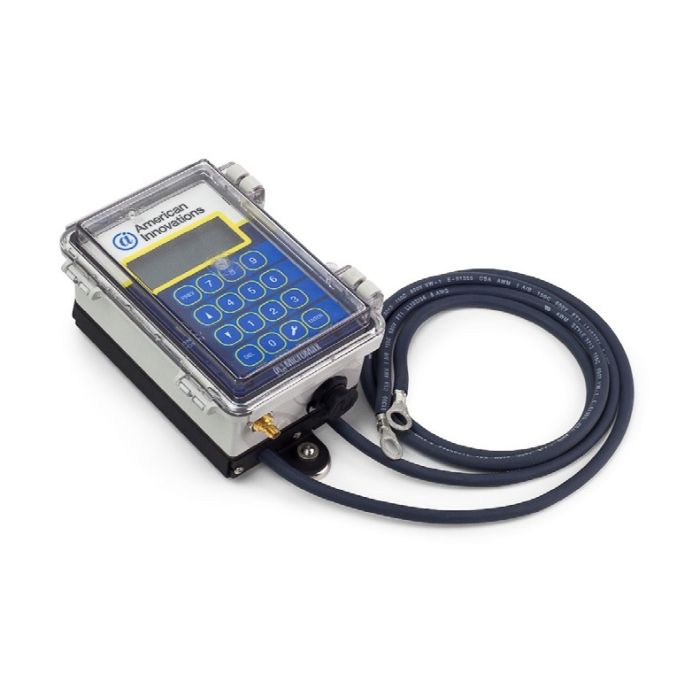

MicroMax GPS360 Current Interrupter

Throw the GPS360 in your truck and you’ll be able to interrupt any facility on your route, even bonds and other facilities that don’t have a power source.

Attachments

(Size: 0.25 MB)

• Convenience – The GPS360 weighs around three pounds and is one-fifth the size of

competing models with similar features, making it easy to transport. It fits inside most

rectifier cabinets and, with an integrated keypad and LCD screen, it’s easy to use too. Just

program it directly or choose from one of the nine interruption programs you can build into

the unit, and you’re ready to go.

• Flexibility – With the GPS360, you have options. In cases where you need more than 60

hours of interruption, you can connect it to an external power source. It also offers a

flexible interruption schedule that lets you interrupt in continuous, daily, dated, and

interference modes with interruption on/off cycles up to 999.9 seconds on 0.1 second

increments.

• Reliability – The GPS360 includes a normally closed solid-state relay that provides

continuous CP even if the interrupter loses power. Surge events aren’t a problem either,

since the GPS360 comes with an optically driven relay that protects it from surge damage.

In the case of a power loss, it will automatically continue its interruption program once

power is restored. And its GPS synchronization features means that your survey won’t be

affected by temporary GPS signal loss.

Input power	10-60V DC or 8-42V AC
GPS	Supports GPS synchronization
Interruption schedule	Range: 0.1 - 999.9s & increments by 100 mS
Auxillary relay drive capacity	0.5A
Operating temperature	-30° C to +70° C
Programmable schedules	9 programmable schedules
Display and enclosure	LCD display, fully waterproof case, transparent cover
Dimensions	8.0’’ x 4.5’’ x 4’’ (with magnets attached)
Weight	3 lbs. 1 oz. (1.39 kg)
Integrated solid-state relay	Load current: See derating table below Load voltage: 100V peak DC
Integrated battery	Operating time: 60 hours Charging time: 8 hours (USB, 12V DC)
