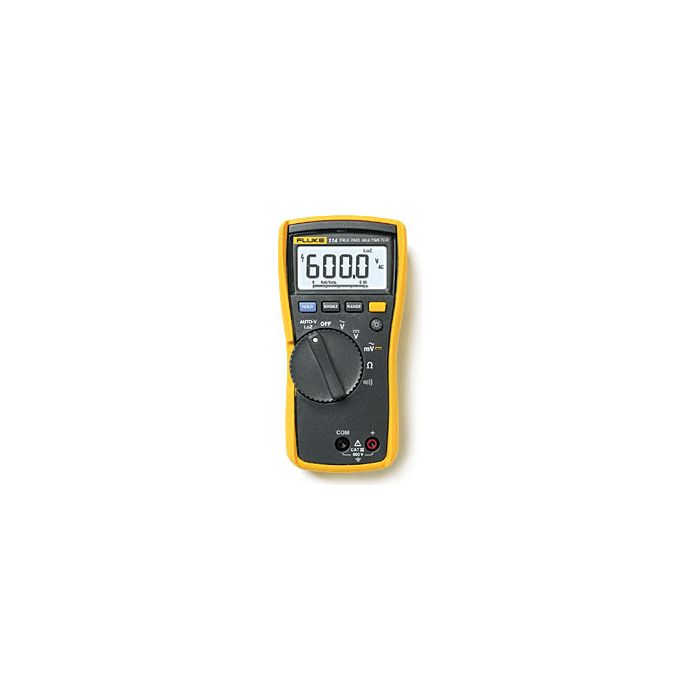

Model 114 True-RMS Multimeter by Fluke

Compact True-RMS Meter for Troubleshooting

  • The Fluke 114 Electrical Multimeter, designed by electricians and engineered by Fluke,  is a compact True-RMS meter for
    electrical troubleshooting. The Fluke 114 is the troubleshooting tool for “go/no-go” testing. It includes a feature to prevent false readings caused by ghost voltage.

    Also check out the slightly more expensive Fluke 115 Digital Multimeter, which adds:

    • Diode test
    • Capacitance measurement
    • Lo-Z capacitance measurement
    • AC True RMS amps to 10A (45 Hz to 500 Hz)
    • DC amps to 10A
      Frequency measurement
  • Features

    • AutoVolt: automatic AC/DC voltage selection
    • Large white LED backlight to work in poorly lit areas
    • Resistance and continuity
    • Min / Max / Average to record signal fluctuations
    • CAT III 600V safety rated
    • All inputs protected to CE, IEN61010-1 CAT III 600V. UL, CSA, TÜV listed and VDE.


  •

    Specifications

    Maximum voltage

    600V between any terminal and earth ground

    Surge protection

    6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2

    Display

    Digital:

    6,000 counts, updates 4 per second

    Bar graph

    33 segments, updates 32 per second

    Operating Temperature

    -10 °C to + 50 °C

    Storage Temperature

    -40 °C to + 60 °C

    Battery type

    9V alkaline, NEDA 1604A/ IEC 6LR61

    Battery Life

    400 hours typical without backlight

    DC millivolts

    Range:

    600.0 mV

    Resolution:

    0.1 mV

    Accuracy:

    ± ([% of reading] + [counts]): 0.5% + 2

    DC volts

    Range/Resolution:

    6.000V / 0.001V

    Range/Resolution:

    60.00V / 0.01V

    Range/Resolution:

    600.00V / 0.1V

    Accuracy:

    ± ([% of reading] + [counts]): 0.5% + 2

    Auto volts

    Range:

    600.0 V

    Resolution:

    0.1 V

    Accuracy:

    2.0 % + 3 (dc, 45 Hz to 500 Hz)4.0 % + 3
    (500 Hz to 1 kHz)

    AC millivolts true-rms

    Range:

    600.0 mV

    Resolution:

    0.1 mV

    Accuracy:

    1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3
    (500 Hz to 1 kHz)

    AC volts true-rms

    Range/Resolution:

    6.000 V / 0.001 V

    Range/Resolution:

    60.00 V / 0.01 V

    Range/Resolution:

    600.0 V / 0.1 V

    Accuracy:

    1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3
    (500 Hz to 1 kHz)

    Continuity

    Range:

    600 Ω

    Resolution:

    1 Ω

    Accuracy:

    Beeper on < 20 Ω, off > 250 Ω
    Detects opens or shorts of 500 μs or longer.

    Ohms

    Range/Resolution:

    600.0 Ω / 0.1 Ω

    Range/Resolution:

    6.000 kΩ / 0.001 kΩ

    Range/Resolution:

    60.00 kΩ / 0.01 kΩ

    Range/Resolution:

    600.0 kΩ / 0.1 kΩ

    Range/Resolution:

    6.000 MΩ / 0.001 MΩ

    Accuracy:

    0.9 % + 1

    Range/Resolution:

    40.00 MΩ / 0.01 MΩ

    Accuracy:

    5 % + 2

    Size

    167 x 84 x 46 mm (6.57" x 3.31" x 1.82")

    Weight

    550 g

    Warranty

    3 years

  •

    Models & Accessories

    Fluke 114

    Electrical Multimeter. Includes:

    • Holster
    • Installed 9V battery
    • TL75 test leads
    • User manual
