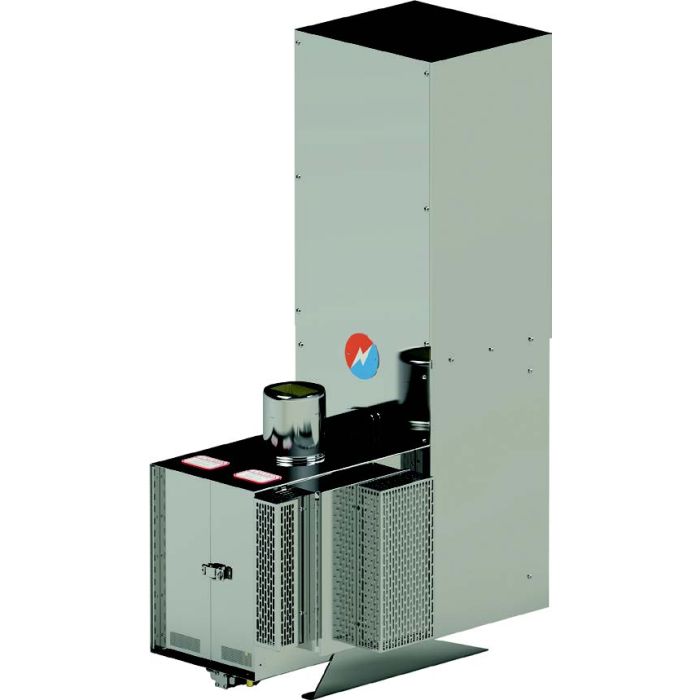

Model 5220 Thermoelectric Generator

The Model 5200 Thermoelectric Generator provides up to 178 watts of DC power.  It is a reliable, low-maintenance source of DC power for any application where regular utilities are unavailable or unreliable.
  • Global Power Technologies is the world leader in the design, manufacture and distribution of Thermoelectric Generators (TEGs), providing the most reliable source of unattended off-grid power available on the market today.

    Featuring a solid-state design (no moving parts) TEGs are built to work in the most challenging environments on Earth. Extreme temperatures and weather conditions, day or night… they just work. Individual TEGs can provide power from 10W to 500W, and TEGs can be integrated to provide more power in multi-TEG modular solutions. Global Power Technologies offers TEGs for general area and hazardous location operations.

  • Model 5220



    The Model 5220 Thermoelectric Generator contains no moving parts.
    A reliable, low-maintenance source of DC power for any application where
    regular utilities are unavailable or unreliable.


    Key Features

    • Automatic Spark Ignition (SI)
    • Automatic Fuel Shut-Off (SO)
    • Fuel Filter
    • Low Voltage Alarm Contacts (VSR)
    • Volt & Amp Meter
    • Reverse Current Protection
    • Universal Wind Scoop
    • Certified to CSA/ANSI 13.1 :22

    Optional Features:



    • Cathodic Protection Interface
    • Remote Start
    • Heat Recovery System (HRS)
    • Pole or Bench Stand
    • Corrosive Environmental Fuel System
    • Pole Mount or Bench Stand
    • Marine Service
  • POWER SPECIFICATIONS

    POWER RATING AT 20ºC (68ºF)
    195 Watts @ 12 Volts
    178 Watts @ 24 Volts
    ELECTRICAL

    OUTPUT ADJUSTMENT RANGE
    12 Volts      12–18 Volts
    24 Volts       24–30 Volts

    Output: Terminal block which accepts up to 8 AWG wire. Opening for 3/4" conduit in base of cabinet.
    FUEL REQUIREMENTS

    NATURAL GAS
    19.7 Sm3/day (696 Sft3/day)
    1000 BTU/Sft3 (37.7 MJ/Sm3) gas
    max 115 mg/Sm3 (~170 ppmw) H2S
    max 120 mg/Sm3 H2O
    max 1% free O2

    PROPANE
    28.6 L/day (7.6 US gal/day)

    NATURAL GAS/PROPANE
    Max. Supply Pressure: 345 kPa (50 psi)
    Min. Supply Pressure: 165 kPa (24 psi)
    Fuel Connection: 1/4” Female NPT
    ENVIRONMENTAL

    AMBIENT OPERATING TEMPERATURE
    Max. +45ºC (115ºF)
    Min. -40ºC (-40ºF)

    OPERATING CONDITIONS
    Unsheltered operation

    Please contact GPT for operating conditions below -40ºC or above +45ºC
    CONSTRUCTION

    MATERIALS
    Cabinet: 304 Stainless Steel (SS)
    Cooling Type: Natural Convection
    Fuel System: Brass, Aluminum & Stainless Steel
    NOTES

    Specifications shown are for standard 5220 configurations. Global Power Technologies (GPT) also offers customized products and systems to accommodate custom voltages, fuel supply systems and operating temperatures.


    Specification data stated in this document is subject to change without notice. To verify these specifications are current, please contact your GPT sales representative.
