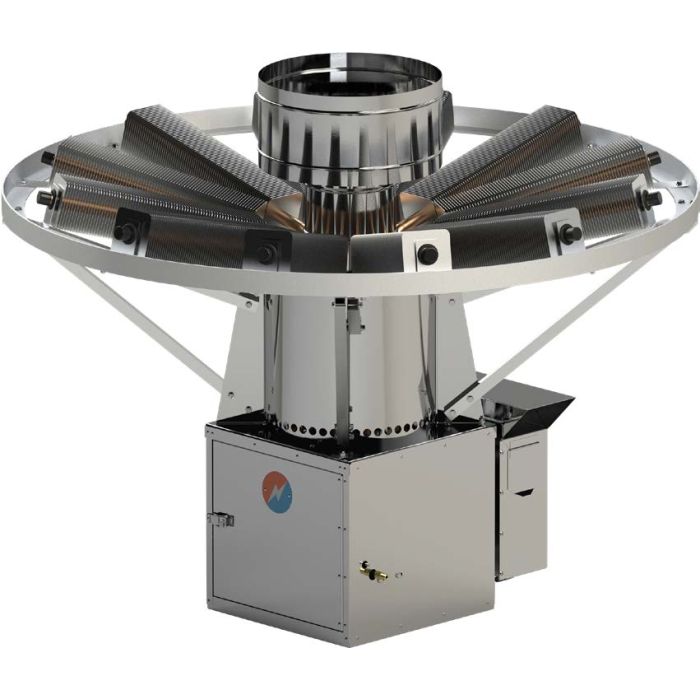

Model 8550 Thermoelectric Generator

The Model 8550 Thermoelectric Generator provides up to 550 watts of DC power.  It is a reliable, low-maintenance source of DC power for any application where regular utilities are unavailable or unreliable.
  • Global Power Technologies is the world leader in the design, manufacture and distribution of Thermoelectric Generators (TEGs), providing the most reliable source of unattended off-grid power available on the market today.

    Featuring a solid-state design (no moving parts) TEGs are built to work in the most challenging environments on Earth. Extreme temperatures and weather conditions, day or night… they just work. Individual TEGs can provide power from 10W to 500W, and TEGs can be integrated to provide more power in multi-TEG modular solutions. Global Power Technologies offers TEGs for general area and hazardous location operations.


  • Model 8550



    The Model 8550 Thermoelectric Generator contains no moving parts.
    A reliable, low-maintenance source of DC power for any application where
    regular utilities are unavailable or unreliable.


    Key Features

    • Automatic Spark Ignition (SI)
    • Automatic Fuel Shut-Off (SO)
    • Fuel Filter
    • Low Voltage Alarm Contacts (VSR)
    • Over Temperature Shutdown
    • Reverse Current Protection
    • Universal Wind Scoop



    Optional Features:



    • Cathodic Protection Interface
    • Remote Start
    • Heat Recovery System (HRS)
    • Bench Stand
    • Corrosive Environmental Fuel System
    • Pole Mount or Bench Stand
    • Operation  Over 4,000m Elevation
    • Rain Cap*



    *Rain cap is provided standard with remote start models

  • POWER SPECIFICATIONS

    POWER RATING AT 20ºC (68ºF)
    480 Watts @ 12 Volts
    480 Watts @ 48 Volts
    550 Watts @ 24 Volts
    ELECTRICAL

    OUTPUT ADJUSTMENT RANGE
    12 Volts        11.4–12.6 Volts
    24 Volts        24–30 Volts
    48 Volts        47–57 Volts

    Output: Terminal block which accepts up to 8 AWG wire.
    Opening for 3/4" conduit in base of cabinet.
    FUEL REQUIREMENTS

    8.0m3 /day (1695 Sft3/day)
    1000 BTU/Sft3  (37.7 MJ/Sm3) gas
    max 115 mg/Sm3 (~170 ppmw) H2S
    max 120 mg/Sm3 H2O
    max 1% free O2

    PROPANE
    76.0 L/day (20.1 US gal/day)

    NATURAL GAS/PROPANE
    Max. Supply Pressure: 172 kPa (25 psi)
    Min. Supply Pressure NG: 103 kPa (15 psi)
    Min. Supply Pressure LPG: 138 kPa (20 psi)
    Fuel Connection: 1/4” Male NPT
    ENVIRONMENTAL

    AMBIENT OPERATING TEMPERATURE
    Max. +45ºC (115ºF)
    Min. -40ºC (-40ºF)

    OPERATING CONDITIONS
    Unsheltered operation, shaded at >45ºC

    Please contact GPT for operating conditions below -40ºC or above +45ºC.
    CONSTRUCTION

    MATERIALS
    Cabinet: 304 Stainless Steel (SS)
    Cooling Type: Natural Convection
    Fuel System: Brass, Aluminum & Stainless Steel
    NOTES

    *Rain Cap included as standard with Remote Start Models.

    Specifications shown are for standard 8550 configurations. Global Power Technologies (GPT) also offers customized products and systems to accommodate custom voltages, fuel supply systems and operating temperatures.

    Specification data stated in this document is subject to change without notice. To verify these specifications are current, please contact your GPT sales representative
