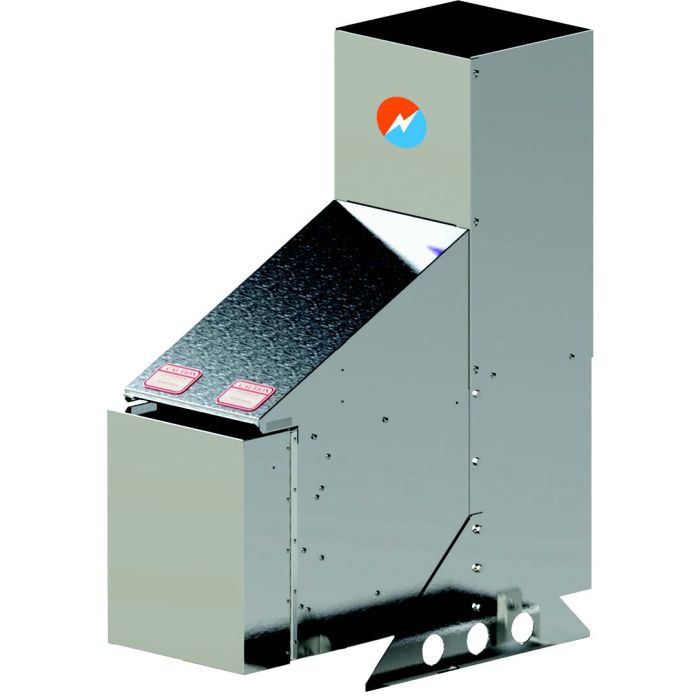

Model P-5100 Thermoelectric Generator

The Model P-5100 Thermoelectric Generator provides up to 100 watts of DC power.  It is a reliable, low-maintenance source of DC power for any application where regular utilities are unavailable or unreliable.

  • Global Power Technologies is the world leader in the design, manufacture and distribution of Thermoelectric Generators (TEGs), providing the most reliable source of unattended off-grid power available on the market today.

    Featuring a solid-state design (no moving parts) TEGs are built to work in the most challenging environments on Earth. Extreme temperatures and weather conditions, day or night… they just work. Individual TEGs can provide power from 10W to 500W, and TEGs can be integrated to provide more power in multi-TEG modular solutions. Global Power Technologies offers TEGs for general area and hazardous location operations.




  • Model P-5100



    The Model P-5100 Thermoelectric Generator contains no moving parts.
    A reliable, low-maintenance source of DC power for any application where
    regular utilities are unavailable or unreliable.


    Key Features

    • Automatic Spark Ignition (SI)
    • Automatic Fuel Shut-Off (SO)
    • Fuel Filter
    • Low Voltage Alarm Contacts (VSR)
    • Reverse Current Protection
    • API 12N Flame Arrestor (Natural Gas Only)
    • Certified to CSA/ANSI 13.1 :22

    Optional Features:



    • Remote Start
    • Corrosive Environmental Fuel System
    • Cathodic Protection Interface
    • Converter Box
    • Heat Recovery System (HRS)
    • Pole Mount or Bench Stand
  • POWER SPECIFICATIONS

    POWER RATING AT 20ºC (68ºF)
    100 Watts @ 14 Volts
    80 Watts @ 54 Volts
    100 Watts @ 27 Volts
    ELECTRICAL

    OUTPUT ADJUSTMENT RANGE
    12 Volts       12–18 Volts
    24 Volts       24–30 Volts
    48 Volts       53–57 Volts

    Note: 12/24 VDC Models: Terminal block accepts up to 8 AWG
    wire. Opening for 3/4" conduit in base of cabinet.
    48 VDC: Terminal block accepts up to 4 AWG wire
    FUEL REQUIREMENTS

    NATURAL GAS
    9.4m3/day (332 Sft3/day)
    1000 BTU/Sft3 (37.7MJ/Sm3) gas
    *1200–1500 BTU/Sft3
    (45.2–56.5) MJ/Sm3) gas
    max 115 mg/Sm3 (~170 ppmw) H2S
    max 120 mg/Sm3 H2O
    max 1% free O2

    PROPANE
    13.8 L/day (3.6 US gal/day)

    NATURAL GAS/PROPANE
    Max. Supply Pressure: 344 kPa (50 psi)
    Min. Supply Pressure: 103 kPa (15 psi)
    Fuel Connection: 1/4” Female NPT
    ENVIRONMENTAL

    AMBIENT OPERATING TEMPERATURE
    Max. +55ºC (130ºF)
    Min. -40ºC (-40ºF)

    OPERATING CONDITIONS
    Unsheltered operation, shaded at >45ºC (113ºF)
    Please contact GPT for operating conditions below
    -40ºC or above +55ºC.
    CONSTRUCTION

    MATERIALS
    Cabinet: 304 Stainless Steel (SS)
    Cooling Type: Natural Convection
    Fuel System: Brass, Aluminum & Stainless Steel
    NOTES

    Specifications shown are for standard P-5100 configurations. Global Power Technologies (GPT) also offers
    customized products and systems to accommodate custom voltages, fuel supply systems and operating
    temperatures.
    Specification data stated in this document is subject to change without notice. To verify these specifications are current, please contact your GPT sales representative.
