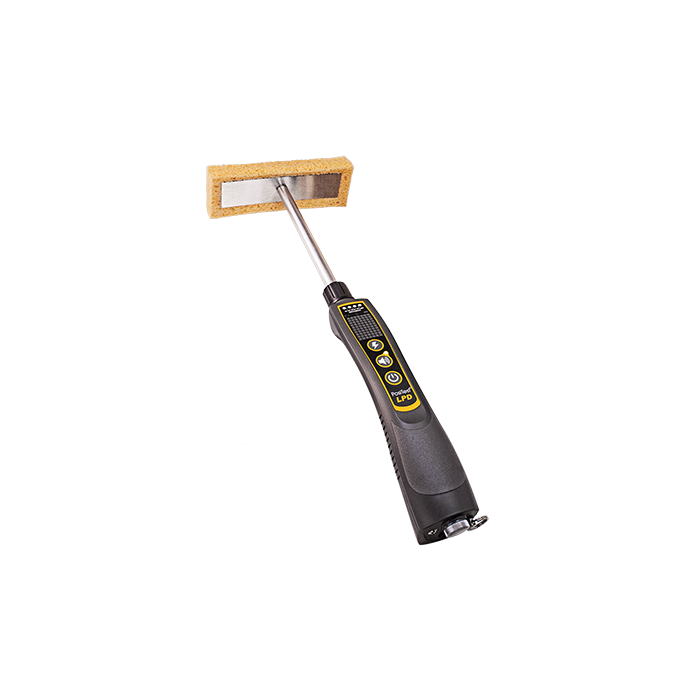

Poistest LPD

  • Low voltage Pinhole Detector for Metal and Concrete Substrates

    Detects holidays, pinholes and other discontinuities in coatings on metal and concrete substrates.
    • GroundSense visibly reassures the user that the instrument is properly grounded
    • 4 voltage output options conform to a variety of standards
    • Weatherproof, dustproof and shockproof - meets or exceeds IP65
    • Rugged, environmentally sealed enclosure
    • Two year warranty
    • Certificate of Calibration showing traceability to NIST included (Long Form)
    Conforms to ISO 14654, ISO 8289-A, ASTM G62, G6, D5162, BS7793-2, NACE TM0384, SP0188, AS3894.2, JIS K 6766

  • Simple

    • Easy-to-use interface with bright, multi-function LEDs
    • Ready to measure -- both kits come with everything needed for testing
    • Audibly and visibly alerts when flaws are detected
    • Light, ergonomic design

    Durable

    • Rugged, environmentally sealed enclosure
    • Weatherproof, dustproof and shockproof -- meets or exceeds IP65
    • Two year warranty

    Accurate

    • Automatic self-test verifies voltage calibration
    • Regulated voltage outputs will not drop under load
    • Long Form Certificate of Calibration included
    • GroundSenseâ„¢ visibly reassures the user that the instrument is properly grounded
    • Conforms to international standards including ISO, ASTM and NACE

    Versatile

    • A wide range of adaptable sponge hardware for a variety of test configurations
    • Common threads and connectors allow for maximum flexibility
    • Headphone jack with included earbud for noisy environments
    • Uses 3 AAA alkaline or rechargeable batteries
    • 4 voltage output options conform to a variety of standards

  • Specifications

    Voltage Setting
    9V ± 5%
    67.5V ± 5%
    67.5V ± 5%
    90V ± 5%
    Sensitivity
    90k ± 3%
    80k ± 3%
    90k ± 3%
    400k ± 3%
    0 – 500 μm (0 – 20 mils)
    Thickness Range
    Temperature Range
    Battery Life
    IP Rating
    Size
    -10 – 50° C (14 – 122° F)
    Weight
    > 150 hrs (depending on battery type)
    meets or exceeds IP65
    27 x 6 x 5.5 cm (10.6" x 2.3" x 2.1") without wand
    180 g (6.4 oz.) without batteries
