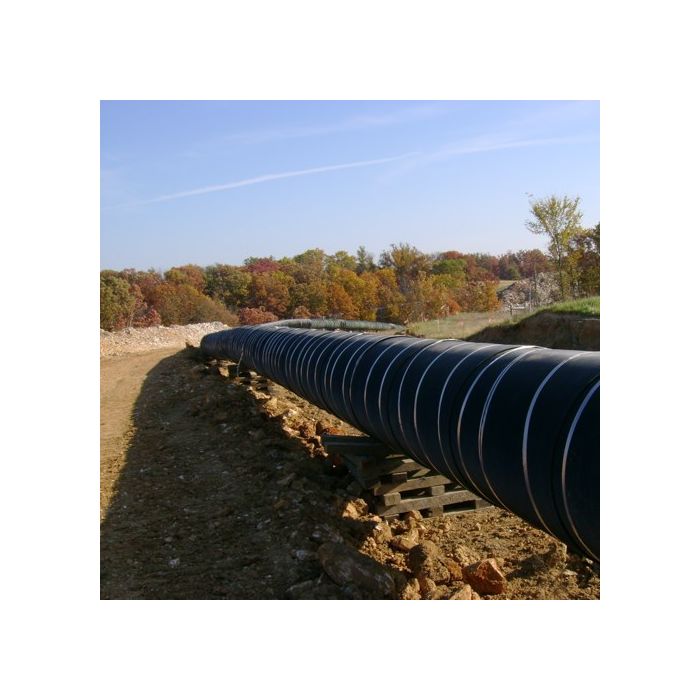

RockGuard HD Pipeline Protection Mesh by Industrial Fabrics, Inc.

RockGuard HD Pipeline Protection Mesh is an 11 mm, three dimensional bi-planar extruded diamond structured mesh rock shield manufactured from polyethylene.

Application

Rock shield for steel and plastic pipelines

Advantages

• Does not interfere with cathodic protection
• Excellent impact and compressive strenghts
• Initial protection during handling and backfill operations
• Long term protection from geologic movement, pipeline vibration and future excavation
• Consistent 11 mm thickness throughout the roll or pad to provide full protection
• Uniform open mesh with channels designed to resist wicking and prevent water storage next to the pipe
• Chemically inert and will not rot
• Effective in all climates
• Flexible for easy handling even in extremely low temperatures
• Ergonomically correct light weight minimizes risk of injury and allows for quick, efficient installation
• Custom sized rolls and pads for every pipeline diameter

Coverages

• Rockguard HD is available in rolls and pads
• Rolls are utilized for pipeline diameters up to 26" with a width equal to the pipeline circumference plus a minimum 6" overlap
• Standard rolls are 50' in length and do not exceed 115 pounds in weight. This ergonomically correct lightweight is a safety benefit and minimizes the risk of injury at the jobsite.
• Pads are utilized for pipelines with diameters greater than 26" with a width to the pipeline circumference plus a minimum 6" overlap
• Standard pad lengths are 84"
