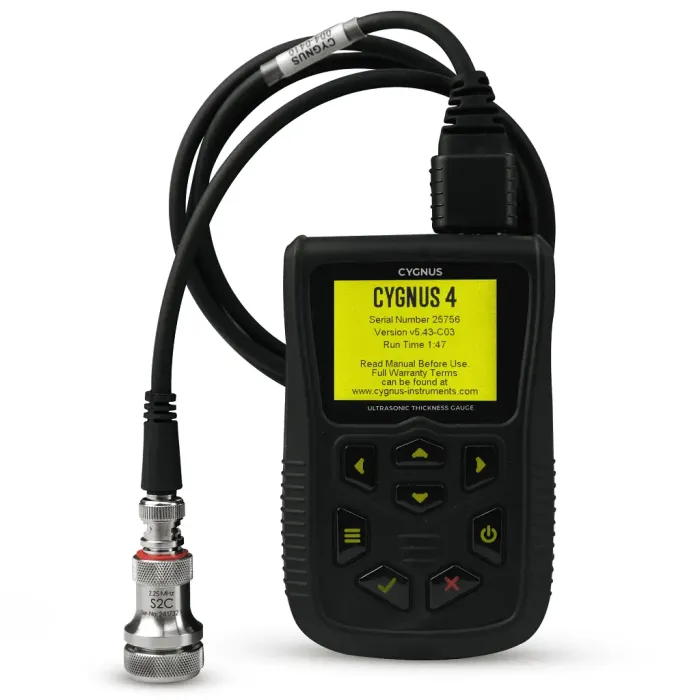

Cygnus 4 General Purpose Ultrasonic Thickness Meter

This robust thickness meter is truly simple to use. It has an intuitive menu and, thanks to the Multiple-Echo technique, it accurately measures metal thickness without removing protective coatings.

Attachments

  • Key Features of the Cygnus 4 General Purpose Meter

    • Multiple-Echo mode for accurate, through-coat measurements as specified by Classification Societies
    • Deep Coat function ignores coatings up to 0.8 inch (20 mm) thick
    • Simple, one-point calibration – no zeroing required
    • Min/Max measurement limit functions
    • Visual and vibrate alert
    • Intuitive easy to use menu
    • Large and bright front color LCD display
    • Extremely rugged enclosure – shock and impact proof to US MIL STD 810G
    • Environmental sealing (water and dust proof) to IP67 – US MIL STD 810G
    • Can be upgraded to 4+ or 6+ at an additional cost.



    Cygnus-Pioneered Multiple Echo Technique

    • Uses three return echoes to give a truly accurate, error-checked metal thickness measurement – ignoring coatings up to 0.8 inch (20 mm).
    • Accepted by all the major Classification Societies.



    Multiple-Echo Ignores Coatings up to 0.8 inch (20 mm) Thick

  • Materials Velocities from 0.0390 – 0.3543 in/us (1,000 – 9,000 m/s)
    Accuracy ±0.002 inch (±0.05 mm) – in Multiple-Echo measurement mode, when calibrated and measuring the same material as calibrated on
    Resolution 0.005 inch (0.1 mm) or 0.002 inch (0.05 mm)
    Transducer Options Single crystal transducers
    Measurement Range in Steel 0.040 – 10 inch (1 – 250 mm) depending on selected transducer and configuration, material and temperature
    Connector 2 x Lemo 00
    Power 3 x AA / R6 batteries
    Battery Life 10 hours continuous measurement
    Electronics Dual channel pulser
    Display 2.4 inch QVGA LCD, 47 x 37 mm
    Size 3.3 x 5.1 x 1.4 inch (84 x 130 x 35 mm)
    Weight 10.5 oz (300 g) (inc. batteries)
    Operating Temp. 14°F – 122°F (-10°C to 50°C)
    Environmental Rating IP67
    MIL STD 810G Method 501.6 (high temp 131°F (+55°C))
    MIL STD 810G Method 502.6 (low temp -4°F (-20°C))
    MIL STD 810G Method 507.6 (humidity 95%)
    MIL STD 810G Method 512.6 (immersion 1 metre for 30 mins)
    Shock and Impact MIL STD 810G Method 514.7 (vibration)
    MIL STD 810G Method 516.7 (shock 20g)
    MIL STD 810G Method 516.7 (transit drop 1.22 m)
    Standards Designed for EN 15317
    Compliance CE, UKCA, RoHS
    Warranty 3 years on gage and 6 months on transducer
    Weight 5 kg
    Kit Cygnus 4 General Purpose Standard Kit WITHOUT PROBE
  • Specifications


    Materials

    Sound velocities between 2000 and 7000 m/s (0.059 and 0.31 in/microsec)

    Covers virtually all common engineering materials

    Measurement Range in Steel

    3 mm - 250 mm (0.100" - 9.995") with 2.25 MHz probe

    2 mm - 150 mm (0.065" - 6.000") with 3.5 MHz probe

    1 mm - 50 mm (0.045" - 4.000") with 5.0 MHz probe

    Accuracy

    0.1 mm (0.005") when calibrated in accordance with Cygnus Instruments Calibration Procedures

    Resolution

    0.1 mm or 0.05 mm (0.005" or 0.002") (selectable)

    Probes

    Single-crystal, soft-faced compression.
    6 mm (1/4")  - 5 MHz
    13 mm (1/2") - 2.25 MHz, 3.5 MHz or 5 MHz
    19 mm (3/4") - 2.25 MHz

    (Lower frequency probes offer better penetration on heavy corrosion/coatings)

    Power source

    2 x AA alkaline batteries or rechargeable NiMH / NiCd

    Battery life

    30 hours continuous operation with alkaline batteries

    Display

    Large liquid crystal display with white backlight - automatically turns off in bright light conditions

    Size

    85 mm x 115 mm x 25 mm (3 3/8" x 3 1/2" x 1")

    Weight

    275 g (9.7 oz) (inc. batteries)

    Compliance

    CE, British Standard BS EN 15317:2007

    (Specification for the characterisation and verification of ultrasonic thickness measuring equipment

    Environmental Protection

    IP65 & IP67

    Operating Temperature

    -10°C to +50°C (14°F to 122°F)

    Envirnmental

    RoHS, WEEE compliant

    Warranty

    3 years on gauge, 6 months on probe

  • To compliment our ultrasonic thickness gages we offer a range of ultrasonic transducers. The performance of any ultrasonic thickness gage relies heavily on the transducer and its suitability to the material being measured. Therefore, selecting the right transducer is vital. All Cygnus SINGLE CRYSTAL transducers are made from stainless steel and include replaceable membranes for long life, requiring no zeroing and have a high linear accuracy.
