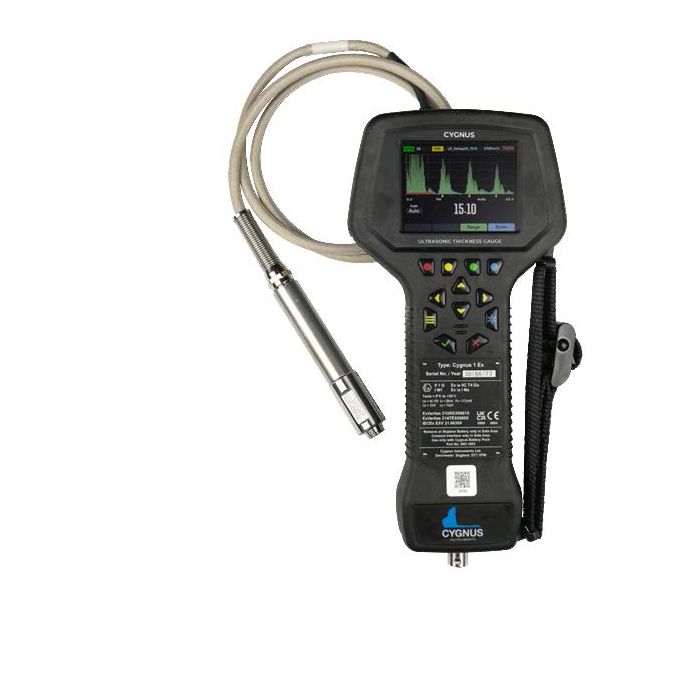

Cygnus 1 Ex Advanced Intrinsically Safe UTG

Designed for taking reliable thickness measurements in all hazardous gas Zones (0, 1, 2), coal mines and combustible dust Zones (21, 22), this Intrinsically Safe UTG boasts advanced data logging and high temperature measurement capability. The Cygnus 1 Ex features a large colour LCD display and 3 measuring modes for through-coat measurements and various materials - including heavily corroded metals.

Attachments

pdf
Technical Literature
(Size: 0.48 MB)

  • An Intrinsically Safe Ex gage, designed for taking reliable thickness measurements in all hazardous gas Zones (0, 1 & 2), coal mines and combustible dust Zones (21, 22). The Cygnus 1 Ex Ultrasonic Thickness Gage is a rugged, handheld, intrinsically safe instrument designed for taking reliable thickness measurements in Zone 0 Explosive Atmospheres – making it ideal for use in fuel depots, road and vessel tankers, mines, chemical plants, oil and gas, refineries, pipelines, hazardous storage tanks and other hazardous environments. This intrinsically Safe UTG is also certified for safe use in combustible dust Zones (21, 22), such as flour mills, sugar plants, and wood manufacturing.

    Key features of the Cygnus 1 Ex advance intrinsically safe ultrasonic thickness gage:

    • Certified to ATEX, IECEx, UKEX for use in all hazardous gas Zones (0, 1, 2), coal mines and combustible dust Zones (21, 22)
    • Intrinsic Safety protection – No need for hot work permits
    • Continuous measurement on hot assets in-service, using the Cygnus High Temperature Ex Probe
    • 3 measuring modes for levels of corrosion, various materials and through-coat measurements
    • Advanced Data Logging (Linear, 2D/3D, Templates) with A-scan and Auto-Log feature
    • Radial Points allow further investigation AROUND a measurement spot/area of interest, e.g. heavy corrosion
    • Deep Coat function ignores thick coatings
    • Manual Measurement Mode allows gates and gain to be configured to suit your application
    • Live A-Scans aid visual measurement verification
    • Live B-scans give a quick, cross-sectional representation
    • 4 function keys for easy controls and dynamic views
    • User Access feature protects records with correct user access levels
    • Measurement setup can be saved and restored for a quick start
    • Measurement Freeze function and Ref/Min/Max thickness limits
    • A solid-state electronic instrument with a rugged IP67 rated enclosure
    • Bluetooth connection for transferring data to CygLink
  • Measuring Modes Single Echo with Twin Crystal Transducers Echo-Echo with Twin Crystal Transducers Multiple Echo with Singly Crystal Transducers
    Materials Sound velocity from 0.0390 to 0.3543 in/us (1000 to 9000 m/s)
    Accuracy ±0.004 inch (±0.1 mm) or 0.1% of thickness measurement whichever is the greatest
    Resolution 0.1, 0.05 or 0.01 mm depending on transducer type
    Transducer Options Single crystal and twin crystal transducers
    Measurement Range in Steel 0.031 to 10 inch (0.8 to 250 mm) depending on selected transducer and configuration, material and temperature
    Connector Single Dual Coaxial Connector
    Power Supply Rechargeable, removable Lithium-Ion battery pack
    Power Rating 2W
    Transducer Sockets Single Dual Coaxial Connector
    Battery Life 6-8 hours continuous measurement
    Display 3.5 inch VGA, sunlight readable color display
    Size 270 x 135 x 80 mm
    Weight 1 kg (gage with battery) 5 kg (complete gage kit)
    Operating Temp. 32°F to 122°F (-0°C to +50°C)
    Storage Temp. 50°F to 149°F (-10°C to +65°C)
    Data Logging 10,000 measurements and A-scans per record
    Computer Software CygLink allows remote logging and viewing of A-scan graphs. Survey and report generation to PDF file. Graphic analysis of data and statistical calculations. Bluetooth connection to transfer data to a Windows® computer with CygLink.
    Certification ATEX, IECEx and UKEX I M1 Ex ia Ma II 1G Ex ia IIC T4 Ga II 2D Ex ib IIIB T100C Db Tamb = 0°C to +50°CCertificate Numbers; ATEX: ExVeritas 21ATEX0860X UKEX: ExVeritas 21UKEX0861X IECEx: IECEx EXV 21.0035X
    Environmental Protection IP67 Pollution degree 3
    Standards BS EN 15317-2013
    Warranty 3 years on gage and 6 months on transducer
    Weight 5 kg
    Kit

    Cygnus 1 Ex – SC (Single Crystal) Variant Kit WITHOUT PROBE,

    Cygnus 1 Ex – TC (Twin Crystal) Variant Kit WITHOUT PROBE,

    Cygnus 1 Ex – PLUS Variant Kit WITHOUT PROBE,

    Cygnus 1 Ex – PRO Variant Kit WITHOUT PROBE



  • Cygnus 1 Ex Variants


    SC Variant (Single Crystal use only) Programmed with: – Deep Coat – Multiple-Echo – 1 & 2 Point Calibration – Materials List – Measurement Hold.
    TC Variant (Twin Crystal use only) Programmed with: – Echo-Echo & Single-Echo – Auto Transducer Detection – 1 & 2 Point Calibration – Materials List – Measurement Hold.
    PLUS Variant (Single & Twin Crystal use) Programmed with: – Multiple-Echo, Echo-Echo & Single-Echo – Auto Transducer Detection – Deep Coat, A-Scan & B-Scan – 1 & 2 Point Calibration – Materials List – Measurement Hold.
    PRO Variant (Single & Twin Crystal use) Programmed with: – Multiple-Echo, Echo-Echo & Single-Echo – Auto Transducer Detection – Deep Coat – A-Scan & B-Scan – Data Logging (Linear, Grids, Template & Comments) – Manual Gates (A, A+B, Manual Gain) – Measurement Set-up – User Access – High Temperature Capability – 1 & 2 Point Calibration – Materials List – Measurement Hold.

    Comprehensive Data Logging (Available with PRO Variant)

    • Datalogging: Basic (Linear lists) or Advanced (2D/3D Grids, Templates)
    • Allows a maximum of 10,000 measurement points per record
    • 16 grid patterns available
    • Add radial points to any measurement (linear/grid) to further investigate immediately an area of interest or heavy corrosion
    • 8 User-defined text comments to attach to any measurement point
    • Auto-log feature
    • Saves measurements and A-scans as records on internal memory.

    Cyglink Computer Software (Available with PRO Variant)

    CygLink is a Windows® based application used to transfer and manage data logger records, A-scans, B-scans, templates, measurement comments and material velocity tables. The program can generate PDF reports and export to Excel. It also displays A-scans and B-scans, allowing for after-the-event analysis of logged measurements. Designed for Windows 7® and above.
