Aluminum "Hull" Anodes by Farwest Corrosion
Description
Aluminum anodes have long been used in the fight against corrosion. Applications for aluminum anodes include ship hulls, tank interiors, offshore structures, submerged pipelines, piers, pilings, etc.
ALOLINE aluminum anodes are designed for optimum performance under a variety of environmental conditions and temperature ranges. Cast in different sizes and weights, ALOLINE anodes provide maximum performance in seawater and brackish environments.
Typical Chemical Composition
| Element | Percentage |
| Indium (In) Zinc (Zn) Silicon (Si) Copper (Cu) Iron (Fe) Cadmium (Cd) Others, each Others, total Aluminum |
0.016 to 0.02% 4.75 to 5.75% 0.08 to 0.12% 0.003% Maximum 0.12% Maximum 0.002% Maximum 0.02% Maximum 0.05% Maximum Remainder |
Performance Characteristics
| Anode Capacity Potential (Calomel) Consumption Rate |
1150 amp hours per pound (Minimum) 1.080 volts (Minimum) 7.6 pounds per amp year |
Available Sizes
All dimensions are approximate
Aluminum anodes are available in many different shapes, weights, and core configurations. While many of these configurations are listed in the following charts, many more anodes are available but not shown.
For assistance selecting the appropriate anode, contact a Farwest customer service representative for assistance.

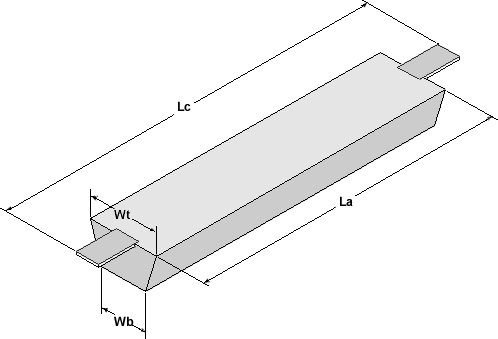

| Anode Number |
Weight (lbs) | Length (in) | Width (in) | Height | Core Dimensions (in) |
|||
| Alum. | Core | La | Lc | Wb | Wt | H (in) | ||
| 10FM | 9 | 1 | 12 | 16 | 2½ | 3½ | 2½ | 3/16 x1¼ |
| 20FM | 18 | 2 | 20 | 25 | 3 | 4½ | 2½ | 3/16 x1½ |
| 29FM | 26 | 3 | 24 | 29 | 4½ | 5½ | 2½ | 3/16 x1½ |
| 37FM | 34 | 3 | 36 | 41 | 3 | 5 | 2½ | 3/16 x1½ |
| 94FM | 87 | 7 | 54½ | 62 | 4 | 4½ | 3¾ | 1/4" x 1½ |
| 110FM | 101 | 9 | 77 | 84 | 4 | 4½ | 3 3/8 | 1/4" x 1½ |
| 144FM | 135 | 9 | 72 | 84 | 7 | 8 | 3 | 1/4" x 1½ |
| 270FM | 245 | 25 | 90 | 102 | 6¾ | 7¼ | 4 | 1/4" x 2½ |
| Anode Number |
Weight (lbs) | Length (in) | Width (in) | Height | Core Dimensions (in) |
|||
| Alum. | Core | La | Lc | Wb | Wt | H (in) | ||
| 11FM | 9 | 2 | 12 | 10 | 5 | 6 | 1½ | 3/16 x1¼ |
| 40FM | 35 | 5 | 18 | 17 | 9 | 9 | 2¼ | 1/4 x 2 |
| 61FM | 56 | 5 | 18 | 17 | 9 | 9 | 3 5/8 | 1/4 x 2 |
| 80FM | 76 | 4 | 48 | 10 | 4 | 4 | 4 | 1/4" x 1½ |
| 95FM | 91 | 4 | 72 | 13¾ | 7 | 7¾ | 2 | 1/4" x 1½ |
| 144FM | 140 | 4 | 72 | 14 | 7 | 8 | 3 | 1/4" x 1½ |
| 284FM | 280 | 4 | 72 | 14 | 7 | 8 | 6 | 1/4" x 2½ |
| Anode Number |
Weight (lbs) | Length (in) | Width (in) | Height | Core Dimensions (in) |
||||
| Alum. | Core | La | Lc | Wb | Wt | Wc | H (in) | ||
| 158FM | 140 | 18 | 40 | 52 | 5¾ | 6¾ | 18¾ | 5½ | 3/8 x 2 |
| 237FM | 212 | 25 | 60 | 68 | 5¾ | 6¾ | 12¾ | 6 | 1/2 x 2 |
