Amprobe ACD-10 TRMS-PLUS True RMS 600A Clamp-On Multimeter

True RMS clamp-on multimeter for AC & DC voltage to 600V, AC current to 600A, plus ohms, capacitance & frequency.

  • Description

    Amprobe’s ACD-10 TRMS-PLUS meter offer thinner jaws over standard clamp meters, allowing access to tight measurement areas and still accommodating conductors up to 25 mm. Both meters also measure Capacitance and Frequency. Frequency is measured by either jaws or test leads. Very versatile clamp multimeters. True RMS version for noisy measurement environments for a more accurate reading.



  • Features

    • True RMS (TRMS) voltage & current measurement
    • AC & DC Voltage to 600V
    • AC Current to 600A
    • Thin Jaws only 10 mm (0.4”) thick
    • Resistance to 40 MΩ
    • Continuity Buzzer
    • Capacitance to 3000 µF
    • Frequency measurement
    • Inrush current
    • Hold & Maximum reading functions
    • Accommodates conductors up to 26 mm (1.02”) in diameter
    • Auto ranging
    • Auto power off
    • Rubber over-molded case
    • Overload protected
    • Included Accessories: Test leads, battery installed, soft carrying pouch, users manual
    • Wide choice of Amprobe multimeter accessories


  • Specifications



    DC Voltage Ranges

    400.0 mV, 4.000, 40.00, 400.0 V, 600 V

    DC Voltage Accuracy

    ± 0.5% rdg ± 3 digits (± 1.0% rdg ± 4 digits on 600V scale)

    AC Voltage Ranges

    4.000, 40.00, 400.0 V, 600 V

    AC Voltage Accuracy

    ± 1.5% rdg ± 5 digits (± 2.0% rdg ± 5 digit on 600V scale)

    AC Crest Factor

    < 1.75 : 1 at full scale limited to fundamental and harmonics, that fall within the meter specified AC bandwidth for non-sinusoidal waveforms.

    Input Impedance

    10 MΩ

    Transient Protection

    6.5 kV (1.2 / 50 μs surge)

    AC Current (clamp-on)

    40.00, 400.0, 600 A

    True RMS Sensing

    10% to 200% of range

    Overload Protection

    600A rms continuous

    Resistance Ranges

    400.0 Ω, 4.000, 40.00, 400.0 kΩ, 4.000 MΩ, 40.00 MΩ

    Frequency Ranges

    0 Hz to 100 kHz (depending on signal type)

    Capacitance Ranges

    500.0 nF, 5.000 μF, 50.00 μF, 500.0 μF, 3000 μF

    Diode Test

    < 1.6 VDC @ 0.25 mA

    Audible Continuity Test

    Between 10 Ω and 120 Ω

    Display

    3-3/4 digit (4000 count) LCD display

    Update Rate

    3 per second

    Polarity

    Automatic

    Operating Temperature

    0°C to 40°C

    Relative Humidity

    < 80% RH up to 31°C decreasing to 50% RH at 40°C

    Altitude

    Operation below 2000 m. Indoor use.

    Storage Temperature

    -20°C to 60°C, < 80% RH (with battery removed)

    Low Battery

    Below approx. 2.4V

    Power Supply

    3V coin battery IEC-CR2

    Power Consumption

    2.8 mA typical, except 3.3 mA typical for ACA function

    Auto Power Off

    After being idle for 30 minutes

    Max Conductor Diameter

    26 mm (1 inch)

    Special Features

    30ms Max Hold; Data Hold; Relative Zero mode

    Dimensions

    190 x 63 x 32 mm (7.4 x 2.5 x 1.3 in)

    Weight

    139 gm

    Safety

    Meets EN61010-2-032, UL61010B-2-032, IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. CAT III-600 Volts ac & dc; Pollution degree : 2

    Related Products

    ACD-10 PLUS 600A Clamp-On Multimeter

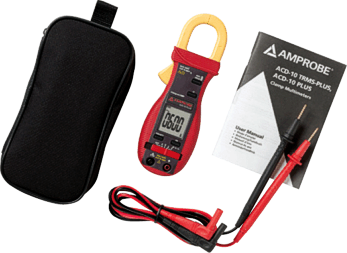

  • Included Accessories


     Test leads, battery installed, soft carrying pouch, users manual.
