HBE-HT Brush Grade Epoxy by Canusa-CPS

High-build epoxy coating for buried pipelines, operating up to 120°C (248°F).
  • Product Description

    HBE-HT is a state-of-the-art surface coating designed to solve specific industry problems by combining the unique features of epoxy and proprietary cure technologies. HBE-HT is a 100% solids, two-component epoxy coating system which has been specifically designed as a protective coating for pipelines operating at elevated temperatures. This coating is available in brush and spray grade formats.

    Typical Uses: Protective coating for pipelines in buried or immersed applications. Used as a direct­to-metal corrosion resistant coating and as a rehab coating on steel pipelines and at girth welds. Also used as touchup material for mainline coatings. Excellent coating for pipeline valves, fittings, and bends.

    Features & Benefits

    • High Build in a single coat
    • Sets and Cures over a broad temperature range
    • Environmentally safe
    • 100% solids, Zero V.O.C.
    • Excellent adhesion to grit blasted steel - an ideal mainline corrosion coating for pipelines
    • Superior adhesion to Fusion Bonded Epoxy (FBE) Coatings - ideal coating for joint protection and repair of FBE coated pipe.
    • Excellent chemical resistance
    • Outstanding resistance to cathodic disbonding up to 120°C (248°F) operating temperatures
    • Easily applied with brush, roller or a heated, airless spray system



    Key Technical Data

    • Coating Description: Phenolic Epoxy
    • Conversion to Solids: 100%
    • Theoretical Coverage:
      425 mil-sq.ft. / liter
      1605 mil-sq.ft. / US gallon
      1.0 mm-m2 / liter
    • Typical Thickness: > 20 mils (500 microns)
    • Flashpoint (T.C.C.): >120°C (250°F)
    • Mixing Ratio: 3 parts base, 1 part cure by volume
    • Safety: MSDS HBE HT Base, MSDS HBE HT Cure

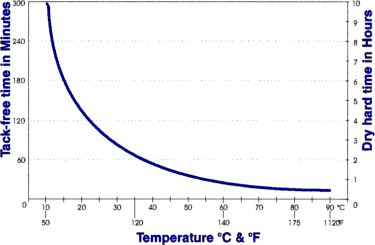

    Typical Cure Schedule

    Applications
    • Oil & Gas
    • Repair & Rehab
    • Corrosion Coating
    • Girth-Weld Joints
    • Fittings & Bends
    • High Temperature



    Configurations
    • Spray Application
    • Brush Application
    • Roller Application
    • Sleeve Compatible



    About CANUSA-CPS

    CANUSA-CPS is a leading manufacturer of specialty pipeline coatings which, for over 30 years, have been used for sealing and corrosion protection of pipeline joints and other substrates. CANUSA-CPS high performance products are manufactured to the highest quality standards and are available in a number of configurations to accommodate your specific project applications.



  • Cured Coating Performance Properties

    Test Standard Test Standard Unit Typical Values

    Hardness

    		 ASTM D2240 Shore D

    Adhesion
        to steel*
        to FBE (gloss removed)


    ASTM D4541
    ASTM D4541
    psi
    psi
    > 2500 psi
    > 2000 psi

    Cathodic Disbondment
        28 days @ 23°C
        28 days @ 120°C


    CSA Z245.20
    CSA Z245.20
    mm, radius
    mm, radius
    < 5
    < 10

    Impact at 25 mils (625 microns)
        @ -30°C
        @ 25°C


    CSA Z245.20
    CSA Z245.20
    Joules (in-lb)
    Joules (in-lb)
    > 1.5 (13.2)
    > 3.0 (26.5)

    Hot Water Immersion
        28 days @ 75°C
        28 days @ 120°C


    CSA Z245.20
    CSA Z245.20
    1 to 5
    1 to 5
    1, excellent
    1, excellent

    Water Absorption

    		 ASTM D149 % < 0.1

    Dielectric Strength

    		 ASTM D543 Volts / micron
    (volts / mil)    		 > 16 (400)

    Chemical Resistance

    		    Various solutions Excellent

    Surface Preparation, Clean-up, Storage & Safety
    • Surface prep direct-to-steel:  Remove all visible deposits of oil, grease and other contaminants by solvent washing in accordance with SSPC SP1. Abrasive blast surface to Near-White (SSPC-SP10; NACE 2; Sa2½) or better, with a 2-4 mil blast profile.

    • Surface prep on cured pipe coating:  Remove gloss on surface by light abrasive blasting or power tool. All surfaces to be coated must be completely dry, free of moisture, soil, dust and grit at the time the coating is applied. All weld splatter must be removed from the surface and rough welds must be ground smooth prior to coating.

    • Clean-up:  Use xylene, MEK, or mixture.

    • Storage:  Products must be shipped and stored at temperatures between 5°C (40°F) and 40°C (105°F). DO NOT FREEZE. Shelf life of 12 months when stored as specified.

    • Safety: Material Safety Data Sheet and product labels contain detailed health, hygiene and safety information. This coating is intended for industrial use by properly trained professional applicators. Do not apply without adequate air exchange and ventilation in enclosed areas. Use fresh air respirator in confined areas. Wear protective clothing when spraying the coating. Breathing fumes or contact with skin can cause respiratory and other allergic reactions in some people.

  • Application Instructions

    • HBE-HT must be applied to clean dry surface only.
    • Ambient conditions for successful application include: relative humidity less than 85%; and the substrate temperature greater than 3°C (5°F) above the dew point.
    • The acceptable substrate temperature range for application of HBE-HT is 10°C (50°F) to 100°C (212°F). Applying onto warm substrate greater than 38°C (100°F) enhances coating adhesion.
    • Formulated to mixing ratio of 3 parts Base to one part Cure by volume.
    • If additional coats are required, they shall be applied while the preceding coat is still tacky (no tie coat needed). The maximum over-coating interval shall not exceed two (2) hours at 25°C (77°F) without roughening the surface. If recoating interval has been exceeded, surface must be blast roughened prior to application of topcoat.
    • A minimum of four (4) hours curing above 20°C (68°F) is required prior to handling. Handling time maybe longer at lower temperatures.



    Brush Grade:

    • Apply thoroughly mixed HBE-HT Brush Grade by brush, roller or trowel. When coating pipe, remove application tools on the upstroke to prevent pulling material down and off the pipe bottom.



    Spray Grade:

    • HBE-HT Spray Grade shall be applied to the specified Dry Film Thickness (DFT) in a single application using a 3:1 mix-ratio Graco Hydra-Cat two-component spray equipment or approved equal.
    • Pot-life of mixed components in spray hose is less than 1 minute.
    • Detailed application instructions and technical support are available from CANUSA-CPS.


  • How to Order


    Product Designation

    Package Contents

    HBE-HT-BG Kit-0.5

    375 mL of HBE-HT Base, 125 mL of HBE-HT-BG Cure

    HBE-HT-BG Kit-1.0

    750 mL of HBE-HT Base, 250 mL of HBE-HT-BG Cure

    HBE-HT-BG Kit-1.5

    1125 mL of HBE-HT Base, 375 mL of HBE-HT-BG Cure

    HBE-HT-BG Application Kit

    1 pair of rubber gloves, mixing sticks, application scraper

    HBE-HT-SG Base-19

    19 L (5 US Gal) of HBE-HT-Spray Grade Base

    HBE-HT-SG Base-200

    200 L (52.8 US Gal) of HBE-HT-Spray Grade Base

    HBE-HT-SG Cure-19

    19 L (5 US Gal) of HBE-HT-Spray Grade Cure

    HBE-HT-SG Cure-200

    200 L (52.8 US Gal) of HBE-HT-Spray Grade Cure
