Hexcorder DCVG/CIPS/GPS Survey Tool by Cath-Tech

SKU#: Cath-Tech Hexcorder Millenium DCVG/CIPS/GPS
Performs both CIPS and DCVG Cathodic Protection Surveys

  • Description

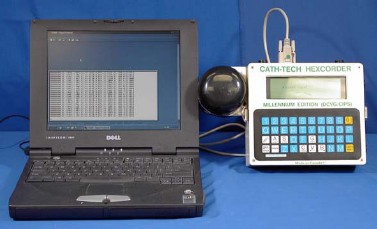

    The Cath-Tech™ Hexcorder Millennium GPS is the ultimate survey tool, capable of performing close interval surveys (CIPS) as well as direct current voltage gradient (DCVG) surveys.

    • CIPS for Potential Surveys
    • DCVG for Coating Condition Surveys

    Like all Cath-Tech™ survey equipment, the Hexcorder Millennium is equipped with a 12-satellite GPS engine for interruption synchronization as well as coordinate display and logging. It can store GPS time and pipeline chainage. It comes with 1 Mbyte of non-volatile CMOS RAM, factory upgradeable to 2 Mbytes. It comes with a large graphic LCD display for text and graphs, and 40-key QWERTY keyboard for data entry. It is shipped ready to use and includes new CuCuSO4 half cells and a spool of wire.

    CIPS + DCVG + GPS

    The Hexcorder Millennium with GPS is a fully integrated close-interval potential survey and direct current voltage gradient survey instrument with a proven track record. It is a purpose-built instrument designed by corrosion engineers for use by corrosion professionals.

    The unit can simultaneously measure and record structure-to-electrolyte potentials as well as the voltage gradient between two half-cells. It can measure and store the rectifier ON and Instant OFF structure-to-electrolyte potentials, voltage gradients, chainage, GPS coordinates, and UTC time. It has a built-in active filter to minimize the effect of induced AC voltages on the measured structure-to-electrolyte potentials. The active AC filter combined with software rejection results in over 80 dB of AC rejection.

    The unit is equipped with exclusive Cath-Tech™ Waveform Software to capture and display electrical interference on the structure-to-electrolyte potential. No special software is required for analysis. The output of the Hexcorder Millennium is comma-delimited ASCII text, which can be imported directly into any spreadsheet or database software.


  • Features

    • Close Interval Survey (CIPS) capable.
    • Direct Current Voltage Gradient (DCVG) capable.
    • Data Logger.
    • 12-satellite GPS engine.
    • 7.2 amper-hour NiMH battery.
    • 240 x 64 pixel graphic LCD display.
    • 40-key QWERTY keyboard for data entry.
    • 1 MB of CMOS RAM standard, 2 MB optional.
    • Waveform software included.
    • Measures and records distance.
    • GPS interruption synchronization.
    • Stores GPS time and coordinates.
    • CMOS circuitry for low power consumption
    • 3.6 AH NMH battery
    Kit Includes:
    • Hexcorder Millennium with WAAS enabled GPS engine and antenna.
    • Rugged carrying case
    • Battery charger
    • Two CuCuSO4 half-cells
    • Two half-cell extension poles
    • Two Hexcorder to half-cell cables
    • Wire dispenser and one spool of wire
    • Hip or backpack wire dispenser
    • RS-232 cable
    • Operator manual


  • Technical Specifications

    Capabilities

    Case
    Coating
    Dimensions
    Weight
    Display
    Keyboard
    Circuitry
    Memory
    A/D conversion
    Read rate
    Battery
    Com Port
    AC Rejection
    GPS Engine
    Ports

    CIPS, DCVG, distance measurement, GPS interruption synchronization
    Machined aluminum
    Fusion-bonded polyester
    210 X 185 X 65 mm
    2.5 kg
    64 X 240 graphic LCD display
    40-key QWERTY waterproof, tactile membrane
    CMOS for low power consumption
    1 MByte non-volatile CMOS expandable to 2 MBytes
    12-bit, 15,000 readings per Second
    > 1 per second
    7.2 AH Nickel Metal Hydride (NiMH)
    9-pin male D
    > 80 dB
    12-satellite, WAAS enabled
    - 2 independent     ± 5000 mV structure-to-electrolyte inputs.
    - 1 X 15-pin D 5-channel     ±5000 mV data logger input.
    - Battery chargerconnector
    - RS-232 port
    - Wire counter input
