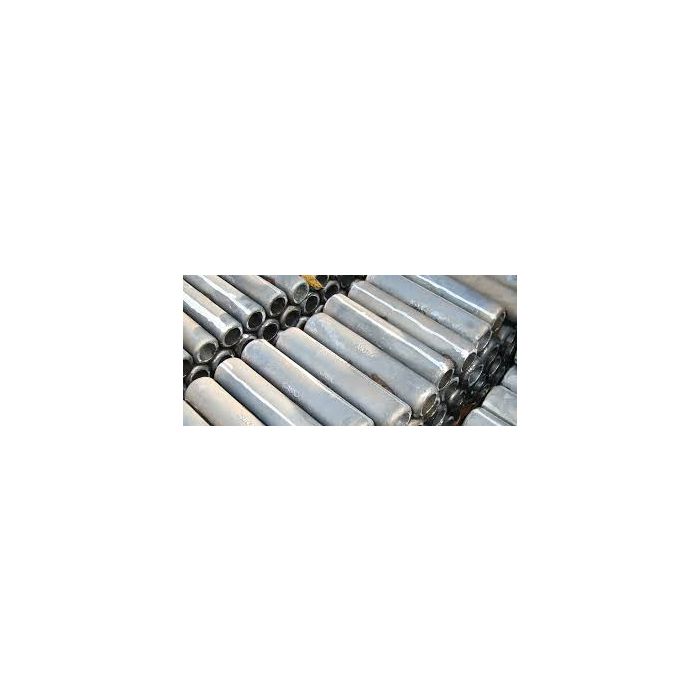

High Silicon Iron Specialty Anodes by Anotec

Anotec small or specialty anodes are for uniqe cathodic protection applications such as suspension systems, wall-mount installations, and more.  The use of these specialtiy anodes depends on the applications and considerations should me made for the environment, needed CP current, design life, and other important considerations.

Chemical Composition:

Silicon:	14.20 - 14.75%
Chromium:	3.25 - 5.00%
Manganese:	1.50% max
Carbon:	0.70 -1.10%
Copper:	0.50% max
Molybdenum:	0.20% max

"Chill Cast" in Metal Molds

Anotec uses the "chill cast" method of manufacturing, which assures consistent weight, greater density, less flake graphite grain boundary, and lower chemical segregation than sand cast anodes. The Anotec chill cast structure is similar to "spin cast" tubular anodes.

Accelerated corrosion tests confirm that Anotec chill cast anodes perform significantly better (up to 19%) than sand cast anodes in chloride and sulfate environments. Test reports are available on request.
