Jiffy Mixer

A mixing attachment for electric or air-driven chucked power tools. Ideal for semi-solid or viscous materials. Cuts mixing time to 90%. Won't splash - Won't suck air. Unconditionally guaranteed.

SKU

Jiffy Mixer

Grouped product items
Product Name	Qty
Jiffy Mixer Model LM, Pint, 10-1/4" Shaft Length $22.20
Jiffy Mixer Model HS-1, 1-2 Gal, 10-1/4" Shaft Length $24.55
Jiffy Mixer Model HS-2, 1-2 Gal, 14-3/4" Shaft Length $25.20
Jiffy Mixer Model HS-3, 1-2 Gal, 30" Shaft Length $28.60
Jiffy Mixer Model ES, 2-5 Gal, 20-1/2" Shaft Length $58.90
Jiffy Mixer Model PS-1, 5-10 Gal, 20-1/2" Shaft Length $66.30
Jiffy Mixer Model PS-2, 10-50 Gal, 40" Shaft Length $80.45
Jiffy Mixer Model HD, 75-100 Gal, 40" Shaft Length $350.95

Description

All Purpose, Heavy-Duty, Efficient

Jiffy Mixer is a true mixer, not a stirrer. The two vertical blades confine the mixing action within the mixing head while the horizontal opposed blades force material from the upper and lower areas of the container inside the head. The leading edge of the lower horizontal blade will scrape the bottom of the container to bring all settled particles into the head. The ring prevents damage to the blades and puncturing of container walls.

Fits all 1/4" - 3/4" Power Tools

Jiffy Mixers operate with both electric and air-driven chucked power tools. T

ools with 450-750 the best rate of thorough mixing. Permanent installation can be easily accomplished.

Use it to mix:

Adhesives, cement, chemicals, ceramics, coatings, epoxies, foods, foams, glues, hi-viscosity liquids, mortar, paint, pharmaceuticals, polyester gel coats, resins, sheetrock mud, slurry, zinc rich materials or any other "tough to mix" materials.

Sized for a Range of Uses...

From a lab beaker to a

100 gallon container

Jiffymixer Models
(with dimension in inches - mm)

Model	Shaft Length	Container Size	Top Diameter	Bottom Diameter	Depth of Head	Shaft Diameter
LM HS-1 HS-2 HS-3 ES PS-1 PS-2 HD	10¼ - 260 10¼ - 260 14¾ - 374 30 - 762 20½ - 521 20½ - 521 40 - 1016 40 - 1016	Pint 1-2 gal 1-2 gal 1-2 gal 2-5 gal 5-10 gal 10-50 gal 75-100 gal	1¼ - 32 2 5/8 - 66 2 5/8 - 66 2 5/8 - 66 3¼ - 82 4 5/8 - 114 4 5/8 - 114 8½ - 228	1¼ - 32 2 5/8 - 66 2 5/8 - 66 2 5/8 - 66 3¾ - 95 5 1/8 - 127 5 1/8 - 127 9¾ - 254	1 3/8 - 32 2 3/8 - 63 2 3/8 - 63 2 3/8 - 63 3¾ - 95 5 - 127 5 - 127 10 - 254	¼ - 6 ¼ - 6 ¼ - 6 ¼ - 6 3/8 - 9 ½ -13 ½ -13 ¾ - 19

Mixers

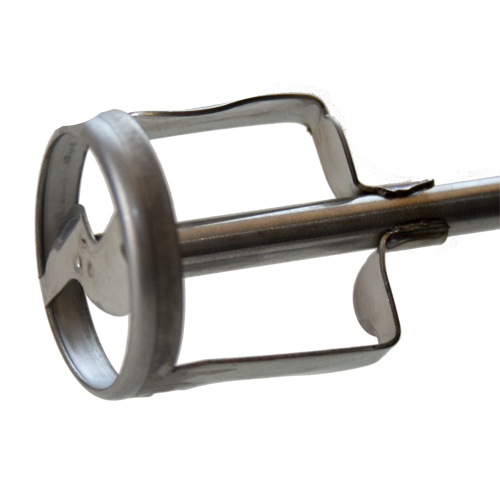

LM

Made of 304 polished stainless steel, the LM model is designed for smaller jobs in pint sized containers. It easily fits any 1/4" electric chucked power tool. The LM model is designed for a max speed of 1200 RPMS. Tools with 450-750 RPMS. get the best rate of thorough mixing. Mixers can be permanently installed if desired.

Shaft Length		Container Size	Top Diameter		Bottom Diameter		Depth of Head		Shaft Diameter
in.	mm		in.	mm	in.	mm	in.	mm	in.	mm
10 1/4	260	pint	1 1/4	32	1 1/4	32	1 3/8	35	1/4	6

HS-1

Made of 304 polished stainless steel, the HS-1 model is designed for medium jobs in 1-2 gal. (4-8qt.) containers. It easily fits any 1/4" electric chucked power tool. The HS-1 model is designed for a max speed of 1200 RPMS. Tools with 450-750 RPMS get the best rate of thorough mixing. Mixers can be permanently installed if desired.

Shaft Length		Container Size	Top Diameter		Bottom Diameter		Depth of Head		Shaft Diameter
in.	mm		in.	mm	in.	mm	in.	mm	in.	mm
10 1/4	260	1-2 gal.	2 5/8	67	2 5/8	67	2 3/8	60	1/4	6

HS-2

Made of 304 polished stainless steel, the HS-2 model is designed for medium jobs in 1-2 gal. (4-8 qt.) containers. It easily fits any 1/4" electric chucked power tool. The HS-2 model is designed for a max speed of 1200 RPMS. Tools with 450-750 RPMS get the best rate of thorough mixing. Mixers can be permanently installed if desired.

Shaft Length		Container Size	Top Diameter		Bottom Diameter		Depth of Head		Shaft Diameter
in.	mm		in.	mm	in.	mm	in.	mm	in.	mm
14 3/4	375	1-2 gal.	2 5/8	67	2 5/8	67	2 3/8	60	1/4	6

HS-3

Made of 304 polished stainless steel, the HS-3 model is designed for medium jobs in 1-2 gal. (4-8 qt.) containers. It easily fits any 1/4" electric chucked power tool. The HS-3 model is designed for a max speed of 800 RPMS. Tools with 450-750 RPMS get the best rate of thorough mixing. Mixers can be permanently installed if desired.

Shaft Length		Container Size	Top Diameter		Bottom Diameter		Depth of Head		Shaft Diameter
in.	mm		in.	mm	in.	mm	in.	mm	in.	mm
14 3/4	375	1-2 gal.	2 5/8	67	2 5/8	67	2 3/8	60	1/4	6

ES

Made of 304 polished stainless steel, the ES model is designed for medium to heavy jobs in 2-5 gal. (8-20 qt.)containers. It easily fits any 3/8" electric chucked power tool. The ES is designed for a max speed of 1000 RPMS. e ES model is designed for a max speed of 1000 RPMS. Tools with 450-750 RPMS get the best rate of thorough mixing. Mixers can be permanently installed if desired.

Shaft Length		Container Size	Top Diameter		Bottom Diameter		Depth of Head		Shaft Diameter
in.	mm		in.	mm	in.	mm	in.	mm	in.	mm
20 1/2	521	2-5 gal	3 1/4	83	3 3/4	95	3 3/4	95	3/8	10

PS-1

Made of 304 polished stainless steel, the PS-1 model is designed for heavy duty jobs in 5-10 gal. (20-40 qt.) containers. It easily fits any 1/2" electric chucked power tool. The PS-1 model is designed for a max speed of 800 RPMS. Tools with 450-750 RPMS get the best rate of thorough mixing. MIxers can be permanently installed if desired.

Shaft Length		Container Size	Top Diameter		Bottom Diameter		Depth of Head		Shaft Diameter
in.	mm		in.	mm	in.	mm	in.	mm	in.	mm
20 1/2	521	5-10 gal.	4 5/8	117	5 1/8	130	5	127	1/2	13

PS-2

Made of 304 polished stainless steel, the PS-2 model is designed for heavy duty jobs in 10-50 gal. (40-200 qt.) containers. It easily fits any 1/2" electric chucked power tool. The PS-2 model is designed for a max speed of 450 RPMS. Tools with 450-750 RPMS get the best rate of thorough mixing. Mixers can be permanently installed if desired.

Shaft Length		Container Size	Top Diameter		Bottom Diameter		Depth of Head		Shaft Diameter
in.	mm		in.	mm	in.	mm	in.	mm	in.	mm
40	1016	10-50 gal.	4 5/8	117	5 1/8	130	5	127	1/2	13

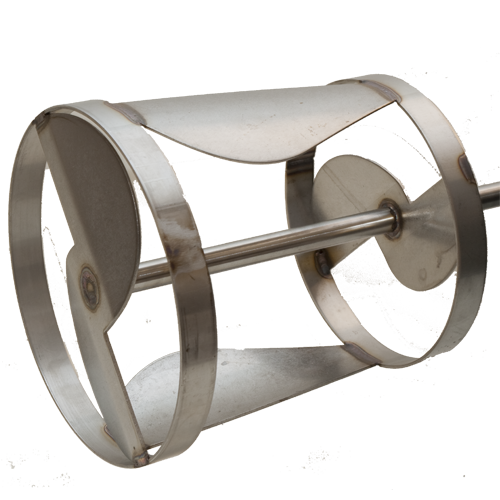

HD

Made of 304 polished stainless steel, the HD model is designed for heavy duty jobs in 75-100 gal. (300-400 qt.) containers. It easily fits any 3/4" electric chucked power tool. The HD model is designed for a max speed of 250 RPMS. Tools with 450-750 RPMS get the best rate of thorough mixing. Mixers can be permanently installed if desired.

Shaft Length		Container Size	Top Diameter		Bottom Diameter		Depth of Head		Shaft Diameter
in.	mm		in.	mm	in.	mm	in.	mm	in.	mm
40	1016	75-100 gal.	8 1/2	216	9 3/4	248	10	254	3/4	19
