Pit Depth Digital Gauges & Accessories by Exacto

Digital pit depth measurement with ease, accuracy & repeatability
SKU
Pit Depth Digital Gauges
Grouped product items
Product Name Qty
PGMBD, Digital Pit Depth Gauge Kit with 4" Micro Bar & Case by Exacto
$405.00
PGD-360, Digital Pit Depth Gauge Kit with 360° Rolling Base & Case by Exacto
$535.00
PGD-1200, Digital Pit Depth Gauge Kit with 12" Bridging Bar & Case by Exacto
$593.00
PGD-1800, Digital Pit Depth Gauge Kit with 18" Bridging Bar & Case
$565.00
PGD-12/18, Digital Pit Depth Gauge Kit with 12" and 18" Bridging Bar & Case by Exacto
$707.00
PGD-12/18/4, Digital Pit Depth Gauge Kit with 12", 18 and 4" Bridging Bars & Case by Exacto
$776.00
PGD-12/18/4/R, Digital Pit Depth Gauge Kit with 12", 18", 4" and 360° Rolling Base & Case by Exacto
$1,012.00
PGD-12/18/4/R-S, Digital Pit Depth Gauge Kit with 12", 18", 4" and 360° Rolling Base, 12" Step Bar & Case by Exacto
$1,127.00
PGD, Digital Pit Depth Gauge Only by Exacto
$330.00
PGMB, 4" Micro Bar Only by Exacto
$89.00
PG-1200, 12" Bridging Bar Only by Exacto
$160.00
PG-1200SB, 12" Step Bar Only by Exacto
$172.00
PG-1800, 18" Bridging Bar Only by Exacto
$172.00
PG360, 360° Rolling Base Only by Exacto
$390.00
PG Conical Tip by Exacto
$38.00
PG Needle Tip by Exacto
$40.00
PG Extension Kit by Exacto
$71.00
PG Magnet Set by Exacto
$77.00
PG T-Block Assembly by Exacto
$175.00

Description

It's the pits. Getting accurate pit depths and corrosion profiles can sometimes be a problem. Measuring on rounded surfaces or upside down could yieldunreliable results.

Digital pit depth gauges from Exacto Machine & Tool are the answer. The gauges are designed for easy use, accuracy, and repeatability. Now available with a choice of bridging bars for different applications:

  • PGD-1200: 12" bridge with digital gauge
  • PGD-1800: 18" bridge with digital gauge
  • PGMB: 4" bridge "Micro Bar"
  • PGMBD: 4" bridge "Micro Bar" with digital gauge
  • PG1200SB: 12" Step Bar

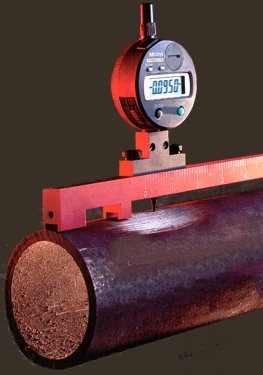

Corrosion profiles can be plotted quickly and accurately by moving the probe and indicator along the bridging bar. Notched feet prevent the bridge from rocking on a rounded surface. Ceramic magnets securely hold the gauge in place -- a definite bonus when working upside-down. The left-handed scale measures increasing depth as the tip drops into the pit. A locking adjustment screw allows instant calibration to a reference surface. Thumbscrews facilitate one-handed operation.

Exacto 12" or 18" Digital Pit Gauge Kits

Includes 12" (PGD-1200) or 18" (PGD-1800) bridging bar, extension rods up to 10", protective molded insulated case, instruction sheet, digital indicator, conical contact tip, Allen wrench.

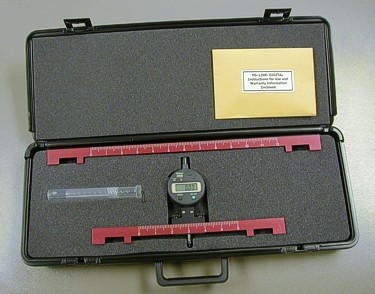

Exacto 12" & 18" Cased Kit

Includes 12" and 18" bridging bars, molded, padded carrying case, and digital pit depth gauge. Also available with dial pit depth gauge. You can also buy the case by itself if you already have the PGD-1200 and PGD-1800 items.





Exacto 4" Short Bridging Bars



PGMBD 4" bridge with digital dial PGMB 4" bridge only

The Micro Bar 4" Exacto Pit Depth Gauge with a 4" Bridging Bar is currently used heavily by oil, gas and water pipeline inspection companies to determine pipe integrity. EMT developed this pit gauge with engineers at a major oil and gas company. It is the foremost accurate tool for pipeline inspection. Ease of use and extreme accuracy make this a necessary tool for any pipeline inspection system.




Exacto 12" Step Bar (NEW)

Model PG1200SB to measure step height.
