Fiberglass Enclosures, NEMA 4X, for Cathodic Protection by Farwest Corrosion

A Simple, Non-metallic Design for Harsh Environments

  • Description

    Application

    Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.

    Specifications
    • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
    • Fiberglass material is easily punched, drilled, filed or sawed
    • Seamless foam-in-place gasket assures water-tight and dusttight seal
    • Threaded internal bosses provided for mounting optional panels and terminal block kits
    • Scratch-resistant polycarbonate windows are permanently bonded in place
    • Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges. Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws.
    • Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail. Attached with Type 316 stainless steel screws. A Type 316L stainless steel padlock hasp is furnished with each enclosure.
    • Sealing washers are furnished with enclosure

    Finish

    Fiberglass material is light-gray inside and out. Optional steel panels are painted white. Optional stainless steel, aluminum and composite panels are unpainted.

    Accessories

    H2OMIT® Vent Drains, Type 4X
    HOL-SEALERS™ Non-Metallic Hole Seals
    Panels for Junction Boxes

    Modification and Customization

    Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information.

  • Drawings


    Standard Product

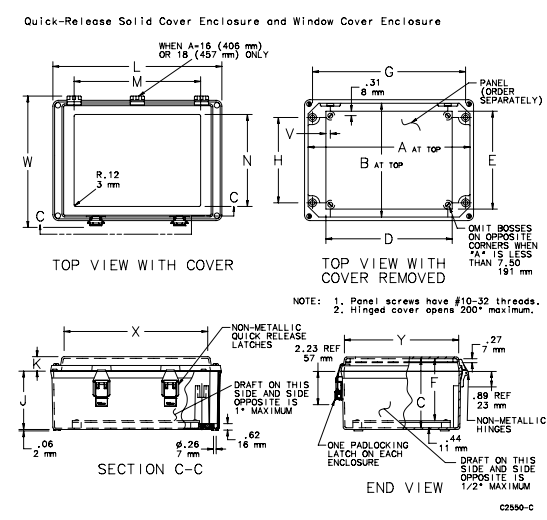

    Solid Cover with Quick-Release Latches

    Catalog Number AxBxC in./mm

    Inside Dimensions
    AxBxC in./mm

    		 Steel
    Panel    		  Aluminum
    Panel     		 Panel
    Size
    D x E in./mm    		 Mounting
    G x H in./mm
     A645JFGQRR 6.00 x 4.00 x 5.00
    152 x 102 x 127     		 5.50 x 4.00 x 4.94
    140 x 102 x 125     		  No Panel No Panel  No Panel
    No Panel     		  4.75 x 2.00
    121 x 51
    A845JFGQRR  8.00 x 4.00 x 5.00
    203 x 102 x 127     		  7.50 x 4.00 x 4.94
    191 x 102 x 125    		 A6P4   A6P4AL 4.88 x 2.88
    124 x 73     		 6.75 x 2.00
    171 x 51
    A865JFGQRR  8.00 x 6.00 x 5.00
    203 x 152 x 127     		  7.50 x 6.00 x 5.19
    191 x 152 x 132    		 A6P6  A6P6AL  4.88 x 4.88
    124 x 124     		 6.75 x 4.00
    171 x 102
    A1066JFGQRR  10.00 x 6.00 x 6.00
    254 x 152 x 152    		 9.50 x 6.00 x 5.69
    241 x 152 x 145     		 A8P6  A8P6AL   6.75 x 4.88
    171 x 124    		 8.75 x 4.00
    222 x 102
     A1287JFGQRR 12.00 x 8.00 x 7.00
    305 x 203 x 178     		 11.50 x 8.00 x 6.69
    292 x 203 x 170     		  A10P8 A10P8AL   8.75 x 6.88
    222 x 175    		 10.75 x 6.00
    273 x 152
     A14107JFGQRR 14.00 x 10.00 x 7.00
    356 x 254 x 178    		 13.50 x 10.00 x 7.19
    343 x 254 x 183     		 A12P10   A12P10AL 10.75 x 8.88
    273 x 226     		 12.75 x 8.00
    324 x 203
    A16128JFGQRR  16.00 x 12.00 x 8.00
    406 x 305 x 203     		 15.50 x 12.00 x 8.19
    394 x 305 x 208     		 A14P12  A14P12AL  12.75 x 10.88
    324 x 276     		 14.75 x 10.00
    375 x 254
     A18149JFGQRR 18.00 x 14.00 x 9.00
    457 x 356 x 229     		 17.50 x 14.00 x 8.69
    445 x 356 x 221     		  A16P14 A16P14AL  14.75 x 12.88
    375 x 327     		 16.75 x 12.00
    425 x 305



    Catalog Number Overall LxW  in./mm    F in./mm J in./mm K in./mm  V in./mm X in./mm  Y in./mm Number
    of Latches
    A645JFGQRR  6.00 x 5.39
    152 x 137     		 4.50
    114     		 4.13
    105     		 1.00
    25     		 --
     --     		 4.22
    107    		  3.59
    91    		 1
    A845JFGQRR 8.00 x 5.39
    203 x 137     		 4.50
    114     		 4.13
    105    		 1.00
    25     		 0.31
    8    		 6.22
    158    		 3.59
    91     		 2
    A865JFGQRR  8.00 x 7.39
    203 x 188     		  4.75
    121    		 4.38
    111     		 1.00
    25     		 0.31
    8    		 6.22
    158    		  5.59
    142    		 2
    A1066JFGQRR  10.00 x 7.39
    254 x 188     		 5.25
    133     		 4.63
    118     		 1.25
    32     		 0.25
    6     		 8.12
    206     		 5.50
    140     		 2
    A1287JFGQRR 12.00 x 9.39
    305 x 239     		  6.25
    159    		 5.13
    130     		 1.75
    44     		 0.25
    6     		 9.97
    253    		  7.34
    186    		 2
    A14107JFGQRR 14.00 x 11.39
    256 x 289    		  6.75
    171    		 5.63
    143     		 1.75
    44    		  0.25
    6    		 11.97
    304     		  9.34
    237    		 2
    A16128JFGQRR  16.00 x 13.39
    406 x 340     		 7.75
    197     		 6.13
    156    		 2.25
    57     		 0.25
    6     		  13.78
    350    		 11.16
    283     		 2
    A18149JFGQRR 18.00 x 15.39
    457 x 391     		 8.25
    210     		  6.63
    168    		  2.25
    57    		  0.25
    6    		  15.78
    401    		 13.16
    334     		 2



    Purchase panels separately
    Purchase perforated panels separately
