Stainless Steel Enclosures, Small, NEMA 4X, for Cathodic Protection by Farwest Corrosion

- Rugged, Seamless Enclosure with Gasket for a Reliable Seal
-
Description
Application
Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.Specifications
- 16 and 14 gauge Type 304 or 316L stainless steel
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Stainless steel screws and clamps
- Pull stainless steel continuous hinge pin to remove door
- Weldnuts provided for mounting optional panels and terminal block kits
- Bonding provision on door and body
Finish
Cover and sides of body have smooth #4 brushed finish.
Accessories
Fast-Operating Clamp-Cover Junction Box Clamp
Lock Kit for Clamp Cover Junction Boxes
Panels for Junction Boxes
Terminal Block Kit Assembly for Junction Boxes OverviewModification and Customization
Hoffman excels at modifying and customizing products to your specifications. Contact your local Hoffman sales office or distributor for complete information. -

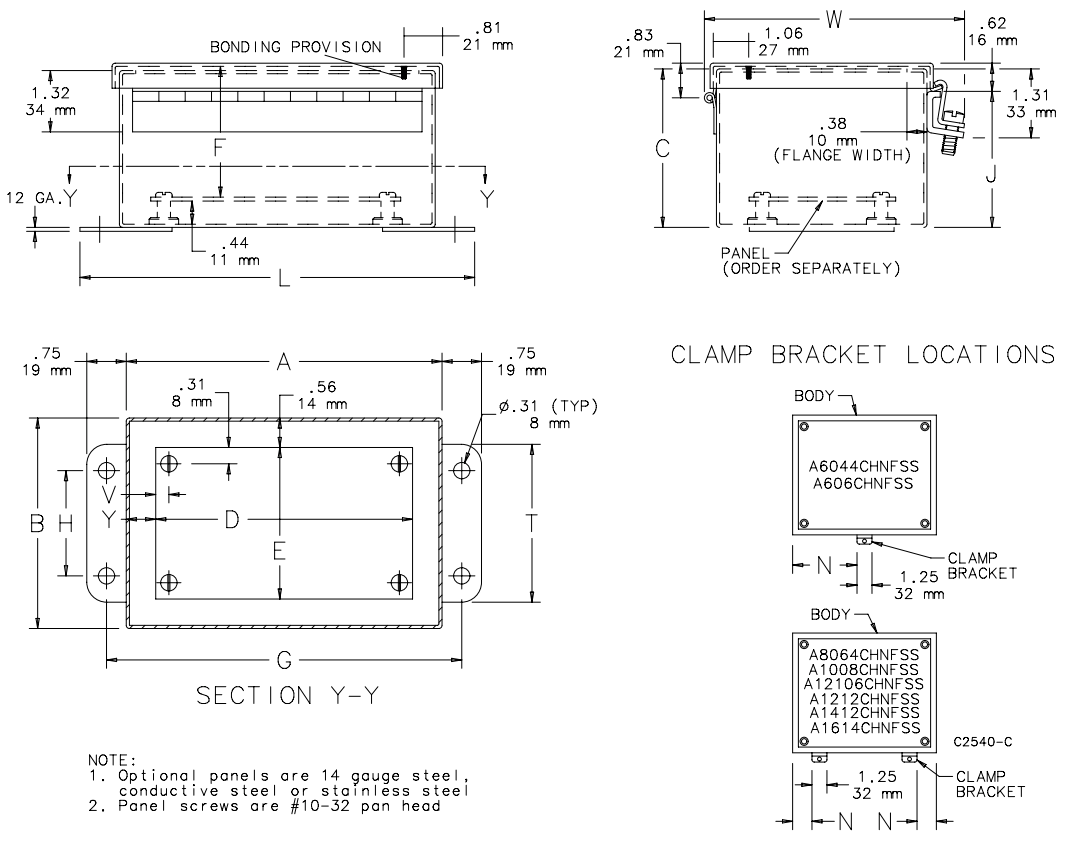

Drawings
Standard Product
Solid Cover with Quick-Release LatchesCatalog Number AxBxC in./mm Stainless
Steel TypeUL Listed Body
GaugeCover
GaugeCond.
PanelPanel Size
DxE in./mmA6044CHNFSS 6.00 x 4.00 x 4.00
152 x 102 x 102304 508A 16 16 A6P4G 4.88 x 2.88
124 x 73A606CHNFSS 6.00 x 6.00 x 4.00
152 x 152 x 102304 50, 50E 16 16 A6P6G 4.88 x 4.88
124 x 124A8064CHNFSS 8.00 x 6.00 x 4.00
203 x 152 x 102304 50, 50E 14 16 A8P6G 6.75 x 4.88
171 x 124A1008CHNFSS 10.00 x 8.00 x 4.00
254 x 203 x 102304 50, 50E 14 16 A10P8G 8.75 x 6.88
222 x 175A12106CHNFSS 12.00 x 10.00 x 6.00
305 x 254 x 152304 50, 50E 14 16 A12P10G 10.75 x 8.88
273 x 225A1212CHNFSS 12.00 x 12.00 x 6.00
305 x 305 x 152304 50, 50E 14 16 A12P12G 10.75 x 10.88
273 x 276A1412CHNFSS 14.00 x 12.00 x 6.00
356 x 305 x 152304 50, 50E 14 16 A14P12G 12.75 x 10.88
324 x 276A1614CHNFSS 16.00 x 14.00 x 6.00
406 x 356 x 152304 508A 14 16 A16P14G 14.75 x 12.88
375 x 327A6044CHNFSS6 6.00 x 4.00 x 4.00
152 x 102 x 102316L 50, 50E 16 16 A6P4G 4.88 x 2.88
124 x 73A606CHNFSS6 6.00 x 6.00 x 4.00
152 x 152 x 102316L 50, 50E 16 16 A6P6G 4.88 x 4.88
124 x 124A8064CHNFSS6 8.00 x 6.00 x 4.00
203 x 152 x 102316L 50, 50E 14 16 A6P4G 6.75 x 4.88
171 x 124A1008CHNFSS6 10.00 x 8.00 x 4.00
254 x 203 x 102316L 50, 50E 14 16 A10P8G 8.75 x 6.88
222 x 175A12106CHNFSS6 12.00 x 10.00 x 6.00
305 x 254 x 152316L 50, 50E 14 16 A12P10G 10.75 x 8.88
273 x 225A1212CHNFSS6 12.00 x 12.00 x 6.00
305 x 305 x 152316L 50, 50E 14 16 A12P12G 10.75 x 10.88
273 x 276A1412CHNFSS6 14.00 x 12.00 x 6.00
356 x 305 x 152316L 50, 50E 14 16 A14P12G 12.75 x 10.88
324 x 276A1614CHNFSS6 16.00 x 14.00 x 6.00
406 x 356 x 152316L 50, 50E 14 16 A16P14G 14.75 x 12.88
375 x 327Catalog Number Mounting
GxH in./mmOverall
LxW in./mmF in./mm J in./mm N in./mm T in./mm V in./mm Y in./mm A6044CHNFSS 6.75 x 2.00
171 x 517.50 x 4.94
191 x 1253.50
893.62
922.38
603.00
760.31
80.56
14A606CHNFSS 6.75 x 4.00
171 x 1027.50 x 6.94
191 x 1763.50
893.62
922.38
605.00
1270.31
80.56
14A8064CHNFSS 8.75 x 4.00
222 x 1029.50 x 6.94
241 x 1763.50
893.62
921.38
355.00
1270.25
60.62
16A1008CHNFSS 10.75 x 6.00
273 x 15211.50 x 8.94
292 x 2273.50
893.62
921.38
357.00
1780.25
60.62
16A12106CHNFSS 12.75 x 8.00
324 x 20313.50 x 10.94
343 x 2783.50
895.62
1432.38
609.00
2290.25
60.62
16A1212CHNFSS 12.75 x 10.00
324 x 25413.50 x 12.94
343 x 3293.50
895.62
1432.38
6011.00
2790.25
60.62
16A1412CHNFSS 14.75 x 10.00
375 x 25415.50 x 12.94
394 x 3293.50
895.62
1432.38
6011.00
2790.25
60.62
16A1614CHNFSS 16.75 x 12.00
425 x 30517.50 x 14.94
445 x 3793.50
895.62
1432.38
6013.00
3300.25
60.62
16A6044CHNFSS6 6.75 x 2.00
171 x 517.50 x 4.94
191 x 1253.50
893.62
922.38
603.00
760.31
80.56
14A606CHNFSS6 6.75 x 4.00
171 x 1027.50 x 6.94
191 x 1763.50
893.62
922.38
605.00
1270.31
80.56
14A8064CHNFSS6 8.75 x 4.00
222 x 1029.50 x 6.94
241 x 1763.50
893.62
921.38
355.00
1270.25
60.62
16A1008CHNFSS6 10.75 x 6.00
273 x 15211.50 x 8.94
292 x 2273.50
893.62
921.38
357.00
1780.25
60.62
16A12106CHNFSS6 12.75 x 8.00
324 x 20313.50 x 10.94
343 x 2785.50
1405.62
1432.38
609.00
2290.25
60.62
16A1212CHNFSS6 12.75 x 10.00
324 x 25413.50 x 12.94
343 x 3295.50
1405.62
1432.38
6011.00
2790.25
60.62
16A1412CHNFSS6 14.75 x 10.00
375 x 25415.50 x 12.94
394 x 3295.50
1405.62
1432.38
6011.00
2790.25
60.62
16A1614CHNFSS6 16.75 x 12.00
425 x 30517.50 x 14.94
445 x 3795.50
1405.62
1432.38
6013.00
3300.25
60.62
16A6044CHNFSS and A6044CHNFSS6 UL 508A Listed. The remaining catalog numbers are UL 50 Listed.
